111-00998 T120R

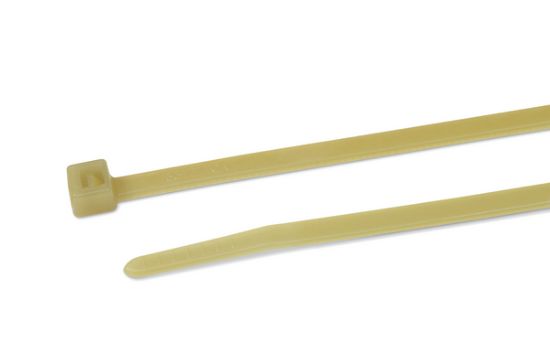

High Temperature Cable Tie, 390mmx7.6mm(LxW), Bundle Max. Φ100 mm, 535N Tensile Strength, PA46, -40 °C to +130 °C, Nature
Manufacturer: HellermannTyton
SKU: 111-00998
MPN: T120R-PA46-NA
Product Family: PA46 Standard Cable Tie
Unit Price: $0.4095
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
600 + $0.4095
1000 + $0.3959
1500 + $0.3851
2500 + $0.3714
4000 + $0.3589
6000 + $0.3481
This product has a minimum quantity of 600
Total Price: $0.4095
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

These inside serrated cable ties are made from Polyamide 4.6 (PA46). They can be applied in environments with continuous temperatures up to +195 °C (for 500 hours) which makes them suitable for applications where a broader temperature range is required. Polyamide 4.6 is a well-known material in the automotive, railway or white goods area. An application tool is recommended to ensure greater process reliability while installing cable ties.

Features

  • Cable tie for high temperature applications up to +150 °C (5000 h) and +195 °C (500 h)
  • Available in different sizes to cover various bundle diameters
  • Low smoke generation in the event of a fire
  • PA46 is a moisture sensitive material
  • Inside serrated cable tie offers strong hold around bundles
  • Easy application either manually or with an application tool
  • Operating temperature (long-term) up to +130 °C
Products specifications
Attribute name Attribute value
Country of Origin BR
Product Family PA46 Standard Cable Tie
Global Part Number T120R-PA46-NA
Product Base Type T120R
Material Abbreviation PA46
Color Nature
Lead Time 16 Weeks
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 390 mm
Cable Tie Length (Imperial) 15.4 inch
Cable Tie Width (Metric) 7.6 mm
Cable Tie Width (Imperial) 0.30 inch
Tie Strap Thickness 1.9 mm
Max. Bundle Diameter Φ100 mm
Min. Tensile Strength (Metric) 535N
Min. Tensile Strength (Imperial) 120 Lbs (54.6 Kgf)
Material Polyamide 4.6 (PA46)
Flammability UL 94-V2
Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 111-00998 T120R-PA46-NA Catalogue PageHT_Automotive_Products_038-038_COM.pdfCatalogue

Drawing

HellermannTyton 111-00998 T120R-PA46-NA Drawing PDFCAD_CT2120003CST.pdfDrawing

Datasheet

HellermannTyton 111-00998 T120R-PA46-NA Datasheet PDFTDS_111-00998_com.pdfDatasheet
