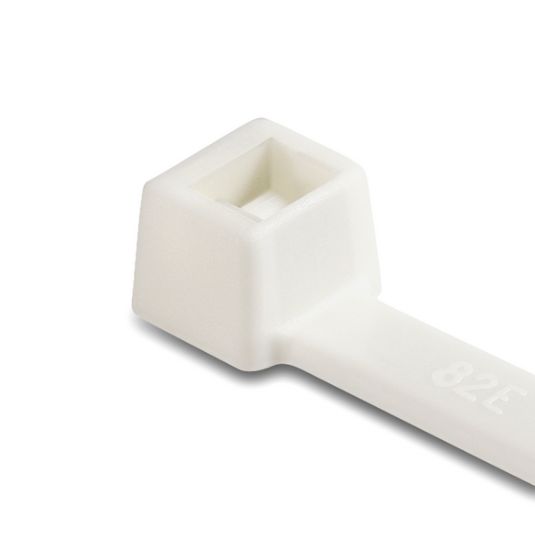

111-00675 T18S

Flame Retardant Cable Tie(Self-Extinguishing), 80mmx2.2mm(LxW), Bundle Max. Φ16 mm, 80N Tensile Strength, PA66V0, -40 °C to +85 °C, Nature
Manufacturer: HellermannTyton
SKU: 111-00675
MPN: T18S-PA66V0-WH
Product Family: Standard Cable Tie (UL 94-V0)
Category: Standard Cable Tie
Unit Price: $0.1099
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
3000 + $0.1099
4000 + $0.1066
5000 + $0.1040
7500 + $0.0994
9000 + $0.0973
15000 + $0.0914
20000 + $0.0881
30000 + $0.0835
40000 + $0.0802
This product has a minimum quantity of 3000
Total Price: $0.1099
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.

Features

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Products specifications
Attribute name Attribute value
Country of Origin JP
Product Family Standard Cable Tie (UL 94-V0)
Global Part Number T18S-PA66V0-WH
Product Base Type T18S
Material Abbreviation PA66V0
Color Nature
Lead Time 16 Weeks
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 80 mm
Cable Tie Length (Imperial) 3.1 inch
Cable Tie Width (Metric) 2.2 mm
Cable Tie Width (Imperial) 0.09 inch
Tie Strap Thickness 1.0 mm
Max. Bundle Diameter Φ16 mm
Min. Tensile Strength (Metric) 80N
Min. Tensile Strength (Imperial) 18 Lbs (8.2 Kgf)
Material Polyamide 6.6 V0 (PA66V0)
Flammability UL 94-V0
EN 45545-2 Classification R22 HL2, R23 HL3
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications ANSI/UL 1565, ANSI/UL 62275, EN45545-2
ELV compliant Yes
ROHS compliant Yes
UL-File Number E64962
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 111-00675 T18S-PA66V0-WH Drawing PDFCAD_18-0884-001-CSH.pdfDrawing

Datasheet

HellermannTyton 111-00675 T18S-PA66V0-WH Datasheet PDFTDS_111-00675_com.pdfDatasheet
