CTH10024 T50MR

Name: CTH10024 T50MR
SKU: CTH10024
Price: 0.26 USD
Availability: InStock

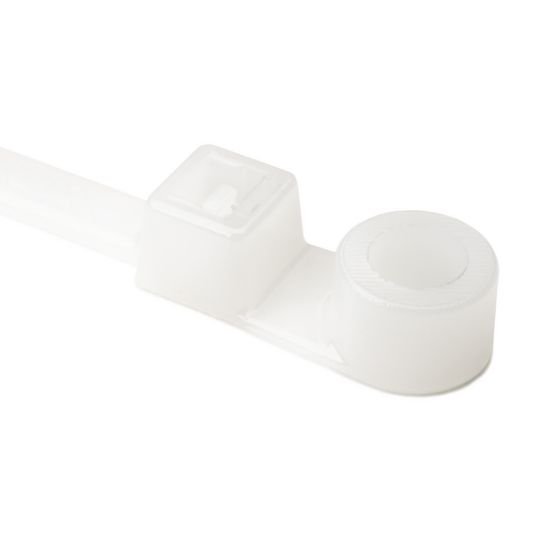

Cable Tie With Screw Mount, 216mmx4.7mm(LxW), M5 Screw, Bundle Max. Φ50 mm, 200N Tensile Strength, PA11, -40 °C to +85 °C, Transparent color

Manufacturer: HellermannTyton

SKU: CTH10024

MPN: T50MR-PA11-CL

Category: Screw Mount Cable Tie

CAD_CT2050003CST.pdfDrawing

TDS_113-00052_com.pdfDatasheet

Unit Price: $0.2555

Availability: Out of Stock - on backorder and will be dispatched once in stock.

Price list

Quantity	Net Price /Piece
1250 +	$0.2555
1500 +	$0.2496
2000 +	$0.2402
2500 +	$0.2329
3500 +	$0.2220
4500 +	$0.2138
6000 +	$0.2044

This product has a minimum quantity of 1250

Qty:

Total Price: $0.2555

Request a free, non-obligation quote today

Create your individual quote quickly and easily

Full Description

This range of one piece cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The tie is fitted to the panel first and then the cables can be added.

Features

One-piece bundling and fixing tie
Quick and easy installation

Products specifications

Attribute name	Attribute value
Country of Origin	CN
Product Family	Screw Mount Cable Tie
Global Part Number	T50MR-PA11-CL
Product Base Type	T50MR
Material Abbreviation	PA11
Color	Transparent color
Lead Time	8 Weeks
Tie Closure	Plastic Pawl
Variant	Inside Serrated
Cable Tie Length (Metric)	216 mm
Cable Tie Length (Imperial)	8.5 inch
Cable Tie Width (Metric)	4.7 mm
Cable Tie Width (Imperial)	0.19 inch
Tie Strap Thickness	1.3 mm
Max. Bundle Diameter	Φ50 mm
Min. Tensile Strength (Metric)	200N
Min. Tensile Strength (Imperial)	45 Lbs (20.4 Kgf)
Mounting Type	Screw Mount
Mounting Screw Type	M5 Screw
Material	Polyamide 11 (PA11)
Flammability	UL 94-HB
UV Resistance	Yes
Chemical Resistance	Yes
Application Area	Solar Industry,
Operating Temperature	-40 °C to +85 °C, (+105 °C, 500 h)
ELV compliant	Yes
ROHS compliant	Yes
Manufacturer	HellermannTyton
Product Unit	Piece
Drawing	CAD_CT2050003CST.pdfDrawing
Datasheet	TDS_113-00052_com.pdfDatasheet
