113-00054 T50MR

Name: 113-00054 T50MR
SKU: 113-00054
Price: 0.15 USD
Availability: InStock

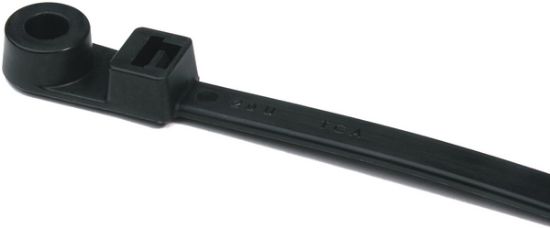

Cable Tie With Screw Mount, 216mmx4.7mm(LxW), M5 Screw, Bundle Max. Φ45 mm, 225N Tensile Strength, PA66W, -40 °C to +85 °C, Black

Manufacturer: HellermannTyton

SKU: 113-00054

MPN: T50MR-PA66W-BK

Category: Screw Mount Cable Tie

HT_Product_Cat_2022_1_12_163-163_COM.pdfCatalogue

CAD_141354.pdfDrawing

TDS_113-00054_com.pdfDatasheet

Unit Price: $0.1548

Availability: Out of stock - on backorder and will be dispatched once in stock (2 weeks).

Price list

Quantity	Net Price /Piece
900 +	$0.1548
1250 +	$0.1503
2000 +	$0.1438
2500 +	$0.1408
4000 +	$0.1343
6000 +	$0.1287
8000 +	$0.1248
12000 +	$0.1192

This product has a minimum quantity of 900

Qty:

Total Price: $0.1548

Request a free, non-obligation quote today

Create your individual quote quickly and easily

Full Description

This range of one piece cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The tie is fitted to the panel first and then the cables can be added.

Features

One-piece bundling and fixing tie
Quick and easy installation

Products specifications

Attribute name	Attribute value
Country of Origin	CN
Product Family	Screw Mount Cable Tie
Global Part Number	T50MR-PA66W-BK
Product Base Type	T50MR
Material Abbreviation	PA66W
Color	Black
Lead Time	5 Weeks
Tie Closure	Plastic Pawl
Variant	Inside Serrated
Cable Tie Length (Metric)	216 mm
Cable Tie Length (Imperial)	8.5 inch
Cable Tie Width (Metric)	4.7 mm
Cable Tie Width (Imperial)	0.19 inch
Tie Strap Thickness	1.2 mm
Max. Bundle Diameter	Φ45 mm
Min. Tensile Strength (Metric)	225N
Min. Tensile Strength (Imperial)	50 Lbs (22.9 Kgf)
Mounting Type	Screw Mount
Mounting Screw Type	M5 Screw
Material	Polyamide 6.6, UV-resistant (PA66W)
Flammability	UL 94-V2
UV Resistance	Yes
EN 45545-2 Classification	R22 HL2, R23 HL2
Operating Temperature	-40 °C to +85 °C, (+105 °C, 500 h)
Specifications	EN 45545-2
ELV compliant	Yes
ROHS compliant	Yes
UL-File Number	E193818
Manufacturer	HellermannTyton
Product Unit	Piece
Catalogue	HT_Product_Cat_2022_1_12_163-163_COM.pdfCatalogue
Drawing	CAD_141354.pdfDrawing
Datasheet	TDS_113-00054_com.pdfDatasheet
