156-03064 T50ROSEC5B

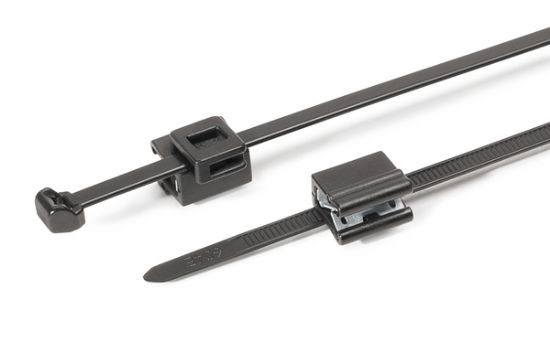

Cable Tie With Edge Clip, 200mmx4.6mm(LxW), For 1-3mm Panel Thickness, Bundle Max. Φ45 mm, 225N Tensile Strength, PA66W, -40 °C to +85 °C, Black
Manufacturer: HellermannTyton
SKU: 156-03064
MPN: T50ROSEC5B-PA66W-BK
Product Family: Edge Clip Ties (1-3mm, Side Fixing)
Unit Price: $0.4694
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
500 + $0.4694
750 + $0.4483
1000 + $0.4334
1250 + $0.4218
1750 + $0.4043
3000 + $0.3763
4000 + $0.3614
This product has a minimum quantity of 500
Total Price: $0.4694
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.

Features

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Cable tie head can be moved after bundling
  • EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
  • For edges of 1 – 3 mm
Products specifications
Attribute name Attribute value
Country of Origin PL
Product Family Edge Clip Ties (1-3mm, Side Fixing)
Global Part Number T50ROSEC5B-PA66W-BK
Product Base Type T50ROSEC5B
Material Abbreviation PA66W
Color Black
Lead Time 16 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 200 mm
Cable Tie Length (Imperial) 7.9 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.3 mm
Max. Bundle Diameter Φ45 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Mounting Type Edge Clip Mount
Fitting Panel Thickness 1.0-3.0 mm
Material Polyamide 6.6, UV-resistant (PA66W)
Flammability UL 94-V2
UV Resistance Yes
EN 45545-2 Classification R22 HL2, R23 HL2
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications EN45545-2
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 156-03064 T50ROSEC5B-PA66W-BK Catalogue PageHT_Automotive_Cat_2024_1_13_237-237_COM.pdfCatalogue

Drawing

HellermannTyton 156-03064 T50ROSEC5B-PA66W-BK Drawing PDFCAD_141476.pdfDrawing

Datasheet

HellermannTyton 156-03064 T50ROSEC5B-PA66W-BK Datasheet PDFTDS_156-03064_com.pdfDatasheet
