156-00684 T50SOSEC5B

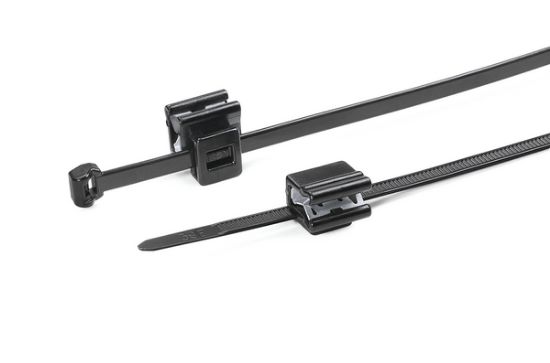

Cable Tie With Edge Clip, 150mmx4.6mm(LxW), For 1-3mm Panel Thickness, Bundle Max. Φ31 mm, 225N Tensile Strength, PA66HS/PA66HIRHS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 156-00684
MPN: T50SOSEC5B-PA66HS/PA66HIRHS-BK
Product Family: Edge Clip Ties (1-3mm, Side Fixing)
Unit Price: $0.6491
Availability: 10000 in stock
Price list
Quantity Net Price /Piece
500 + $0.6491
750 + $0.6182
1000 + $0.5963
1250 + $0.5793
1500 + $0.5655
1750 + $0.5537
2500 + $0.5266
3000 + $0.5127
4000 + $0.4908
5000 + $0.4738
This product has a minimum quantity of 500
Total Price: $0.6491
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.

Features

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Cable tie head can be moved after bundling
  • EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
  • For edges of 1 – 3 mm
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Edge Clip Ties (1-3mm, Side Fixing)
Global Part Number T50SOSEC5B-PA66HS/PA66HIRHS-BK
Product Base Type T50SOSEC5B
Material Abbreviation PA66HS/PA66HIRHS
Color Black
Lead Time 5 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 150 mm
Cable Tie Length (Imperial) 5.9 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.3 mm
Max. Bundle Diameter Φ31 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Mounting Type Edge Clip Mount
Fitting Panel Thickness 1.0-3.0 mm
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability UL 94-V2 (Foot Part: UL 94-HB)
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 156-00684 T50SOSEC5B-PA66HS/PA66HIRHS-BK Catalogue PageHT_Product_Cat_2022_1_13_196-196_COM.pdfCatalogue

Drawing

HellermannTyton 156-00684 T50SOSEC5B-PA66HS/PA66HIRHS-BK Drawing PDFCAD_97-0405-018-CSH.pdfDrawing

Datasheet

HellermannTyton 156-00684 T50SOSEC5B-PA66HS/PA66HIRHS-BK Datasheet PDFTDS_156-00684_com.pdfDatasheet
