156-01254 T18REC22

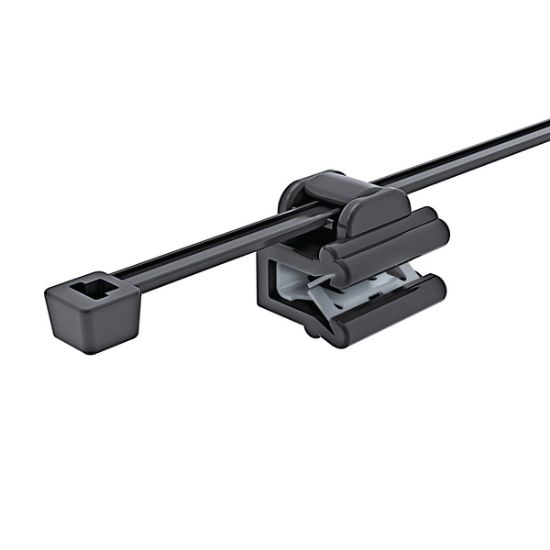

Cable Tie With Edge Clip, 100mmx2.5mm(LxW), For 1-3mm Panel Thickness, Bundle Max. Φ18 mm, 80N Tensile Strength, PA66HS/PA66HIRHS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 156-01254
MPN: T18REC22-PA66HS/PA66HIRHS-BK
Product Family: Edge Clip Ties (1-3mm, Side Fixing)
Unit Price: $0.4015
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
1750 + $0.4015
2500 + $0.3827
3000 + $0.3730
3500 + $0.3649
5000 + $0.3460
6000 + $0.3364
8000 + $0.3212
This product has a minimum quantity of 1750
Total Price: $0.4015
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.

Features

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Cable tie head can be moved after bundling
  • EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
  • For edges of 1 – 3 mm
Products specifications
Attribute name Attribute value
Country of Origin SG
Product Family Edge Clip Ties (1-3mm, Side Fixing)
Global Part Number T18REC22-PA66HS/PA66HIRHS-BK
Product Base Type T18REC22
Material Abbreviation PA66HS/PA66HIRHS
Color Black
Lead Time 16 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 100 mm
Cable Tie Length (Imperial) 3.9 inch
Cable Tie Width (Metric) 2.5 mm
Cable Tie Width (Imperial) 0.10 inch
Max. Bundle Diameter Φ18 mm
Min. Tensile Strength (Metric) 80N
Min. Tensile Strength (Imperial) 18 Lbs (8.2 Kgf)
Mounting Type Edge Clip Mount
Fitting Panel Thickness 1.0-3.0 mm
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability UL 94-V2 (Foot Part: UL 94-HB)
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 156-01254 T18REC22-PA66HS/PA66HIRHS-BK Catalogue PageHT_Automotive_Products_106-107_COM.pdfCatalogue

Drawing

HellermannTyton 156-01254 T18REC22-PA66HS/PA66HIRHS-BK Drawing PDFCAD_04-0814-009-CSH.pdfDrawing

Datasheet

HellermannTyton 156-01254 T18REC22-PA66HS/PA66HIRHS-BK Datasheet PDFTDS_156-01254_com.pdfDatasheet
