156-00973 T50ROSSFT6.5-16-3MD

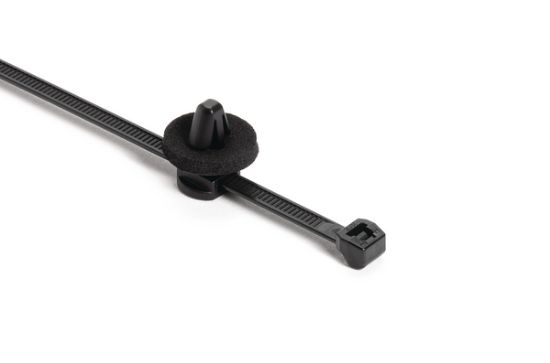

Cable Tie With Push Mount, Sealed, 200mmx4.6mm(LxW), For 6.1-7.0mm Hole, Bundle Max. Φ45 mm, 225N Tensile Strength, PA66HS/PA66HIRHS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 156-00973
MPN: T50ROSSFT6.5-16-3MD-PA66HS/PA66HIRHS-BK
Product Family: Push Mount Cable Tie For Round Hole (Sealed)
Unit Price: $0.6292
Availability: 1800 in stock
Price list
Quantity Net Price /Piece
500 + $0.6292
750 + $0.6010
1000 + $0.5810
1250 + $0.5654
1750 + $0.5420
3000 + $0.5045
4000 + $0.4845
This product has a minimum quantity of 500
Total Price: $0.6292
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.

Features

  • Pre-assembled 2-piece fixing tie with arrowhead foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressure from various directions
  • Seal protects against splash water
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Push Mount Cable Tie For Round Hole (Sealed)
Global Part Number T50ROSSFT6.5-16-3MD-PA66HS/PA66HIRHS-BK
Product Base Type T50ROSSFT6.5-16-3MD
Material Abbreviation PA66HS/PA66HIRHS
Color Black
Lead Time 5 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Sealed Yes
Cable Tie Length (Metric) 200 mm
Cable Tie Length (Imperial) 7.9 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.3 mm
Max. Bundle Diameter Φ45 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Mounting Type Push Mount
Fixing Hole Shape Circular Hole
Fitting Hole Diameter 6.1-7.0mm
Fitting Panel Thickness 2.5-3.0 mm
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability UL 94-V2 (Foot Part: UL 94-HB)
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 156-00973 T50ROSSFT6.5-16-3MD-PA66HS/PA66HIRHS-BK Catalogue PageHT_Product_Cat_2022_1_6_097-097_COM.pdfCatalogue

Drawing

HellermannTyton 156-00973 T50ROSSFT6.5-16-3MD-PA66HS/PA66HIRHS-BK Drawing PDFCAD_96-0377-003-csg.pdfDrawing

Datasheet

HellermannTyton 156-00973 T50ROSSFT6.5-16-3MD-PA66HS/PA66HIRHS-BK Datasheet PDFTDS_156-00973_com.pdfDatasheet
