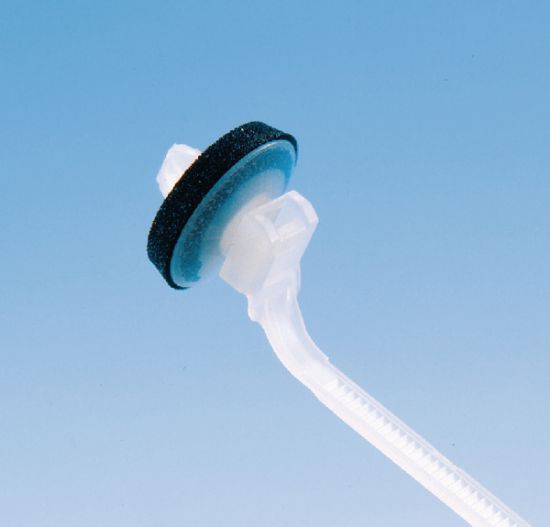

126-00357 OS150-PM6-WPJ

Cable Tie With Push Mount, 150mmx4.0mm(LxW), For 5.8-6.2mm Hole, Bundle Max. Φ30 mm, 100N Tensile Strength, PA66, -40 °C to +85 °C, Nature
Manufacturer: HellermannTyton
SKU: 126-00357
MPN: OS150-PM6-WPJ-PA66-NA
Product Family: Push Mount Cable Tie For Round Hole (Sealed)
Unit Price: $0.4380
Availability: 25000 in stock
Price list
Quantity Net Price /Piece
500 + $0.4380
750 + $0.4226
1000 + $0.4116
1500 + $0.3962
2500 + $0.3768
3500 + $0.3640
5000 + $0.3504
This product has a minimum quantity of 500
Total Price: $0.4380
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors . We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.

Features

  • One-piece fixing ties with cellular rubber disc
  • Especially suitable for door and tailgate harnesses used for car body applications
  • Made from PA66 heat-stabilised material
  • Cellular rubber disc minimises ingress of dust, dirt and splash water
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Push Mount Cable Tie For Round Hole (Sealed)
Global Part Number OS150-PM6-WPJ-PA66-NA
Product Base Type OS150-PM6-WPJ
Material Abbreviation PA66
Color Nature
Lead Time 5 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 150 mm
Cable Tie Length (Imperial) 5.9 inch
Cable Tie Width (Metric) 4 mm
Cable Tie Width (Imperial) 0.16 inch
Tie Strap Thickness 1.4 mm
Max. Bundle Diameter Φ30 mm
Min. Tensile Strength (Metric) 100N
Min. Tensile Strength (Imperial) 22 Lbs (10.2 Kgf)
Mounting Type Push Mount
Fixing Hole Shape Circular Hole
Fitting Hole Diameter 5.8-6.2mm
Fitting Panel Thickness 0.6-2.3 mm
Material Polyamide 6.6 (PA66)
Flammability UL 94-V2
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 126-00357 OS150-PM6-WPJ-PA66-NA Catalogue PageHT_Automotive_Products_076-076_COM.pdfCatalogue

Drawing

HellermannTyton 126-00357 OS150-PM6-WPJ-PA66-NA Drawing PDFCAD_18-2521-001-CSC.pdfDrawing

Datasheet

HellermannTyton 126-00357 OS150-PM6-WPJ-PA66-NA Datasheet PDFTDS_126-00357_com.pdfDatasheet
