151-01147 EC16

Name: 151-01147 EC16
SKU: 151-01147
Price: 0.49 USD
Availability: InStock

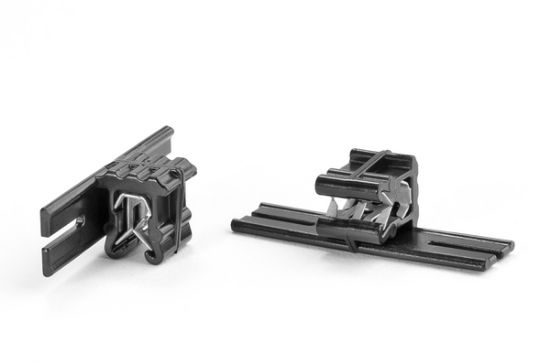

Edge Clip For Cable Bundling, For 1-3mm Panel Thickness, Bar Length 40.0 mm, PA66HIRHS, -40 °C to +105 °C, Black

Manufacturer: HellermannTyton

SKU: 151-01147

MPN: EC16-PA66HIRHS-BK

Product Family: Bundling Clip For Edge

Category: Bundling Clip

Unit Price: $0.4934

Availability: 7000 in stock

This product has a minimum quantity of 600

Qty:

Total Price: $0.4934

Create your individual quote quickly and easily

Full Description

Features

Easy assembly, just shuffle manually
Designed for edges of 1 - 3 and 1.5 - 4 mm
Integrated metal clamp holds clip firmly in place
Clamp consists of double tempered steel spring
ATS fixing elements can be tied automatically with tools ATS3080, AT2000 or AT2000CPK

Products specifications

Attribute name	Attribute value
Country of Origin	CN
Product Family	Bundling Clip For Edge
Global Part Number	EC16-PA66HIRHS-BK
Product Base Type	EC16
Material Abbreviation	PA66HIRHS
Color	Black
Lead Time	5 Weeks
Width (Metric)	13 mm
Width (Imperial)	0.51 inch
Bundling Bar Length	40.0 mm
Mounting Type	Edge Clip Mount
Fitting Panel Thickness	1.0-3.0 mm
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability	UL 94-HB
Operating Temperature	-40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant	Yes
ROHS compliant	Yes
Manufacturer	HellermannTyton
Product Unit	Piece
Catalogue	HT_Automotive_Cat_2024_1_7_160-160_COM.pdfCatalogue
Drawing	CAD_03-0667-001-CSC.pdfDrawing
Datasheet	TDS_151-01147_com.pdfDatasheet
