151-01145 EC14

Name: 151-01145 EC14
SKU: 151-01145
Price: 0.37 USD
Availability: InStock

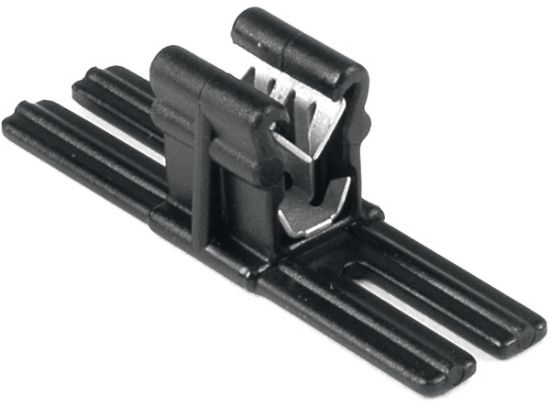

Edge Clip For Cable Bundling, For 1-3mm Panel Thickness, Bar Length 40.0 mm, PA66HIRHS, -40 °C to +105 °C, Black

Manufacturer: HellermannTyton

SKU: 151-01145

MPN: EC14-PA66HIRHS-BK

Product Family: Bundling Clip For Edge

Category: Bundling Clip

HT_Product_Cat_2022_1_7_134-135_COM.pdfCatalogue

CAD_03-0720-001-CSC.pdfDrawing

TDS_151-01145_com.pdfDatasheet

Unit Price: $0.3675

Availability: 8000 in stock

Price list

Quantity	Net Price /Piece
800 +	$0.3675
1000 +	$0.3579
1250 +	$0.3483
1750 +	$0.3338
3000 +	$0.3106
3500 +	$0.3039
5000 +	$0.2885
6000 +	$0.2807
8000 +	$0.2683

This product has a minimum quantity of 800

Qty:

Total Price: $0.3675

Request a free, non-obligation quote today

Create your individual quote quickly and easily

Full Description

EdgeClips are used in the automotive industries and electrical industries and when it is impossible to drill holes or no other fixing points are available.

Features

Easy assembly, just shuffle manually
Designed for edges of 1 - 3 and 1.5 - 4 mm
Integrated metal clamp holds clip firmly in place
Clamp consists of double tempered steel spring
ATS fixing elements can be tied automatically with tools ATS3080, AT2000 or AT2000CPK

Products specifications

Attribute name	Attribute value
Country of Origin	CN
Product Family	Bundling Clip For Edge
Global Part Number	EC14-PA66HIRHS-BK
Product Base Type	EC14
Material Abbreviation	PA66HIRHS
Color	Black
Lead Time	5 Weeks
Width (Metric)	11 mm
Width (Imperial)	0.43 inch
Bundling Bar Length	40.0 mm
Mounting Type	Edge Clip Mount
Fitting Panel Thickness	1.0-3.0 mm
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability	UL 94-HB
Operating Temperature	-40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant	Yes
ROHS compliant	Yes
Manufacturer	HellermannTyton
Product Unit	Piece
Catalogue	HT_Product_Cat_2022_1_7_134-135_COM.pdfCatalogue
Drawing	CAD_03-0720-001-CSC.pdfDrawing
Datasheet	TDS_151-01145_com.pdfDatasheet
