117-05460 T50LDH0UVC2

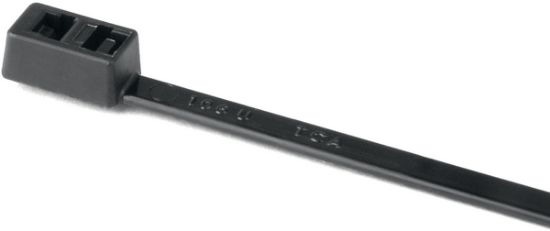

Double Head/Loop Cable Tie, 395mmx4.7mm(LxW), Bundle Max. Φ102 mm, 225N Tensile Strength, PA66W, -40 °C to +85 °C, Black
Manufacturer: HellermannTyton
Unit Price: $0.3695
Availability: Out of stock
Price list
Quantity Net Price /Piece
1750 + $0.3695
2500 + $0.3544
3000 + $0.3468
4000 + $0.3346
5000 + $0.3252
This product has a minimum quantity of 1750
Total Price: $0.3695
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Double loop head ties are ideal for separation of two cable runs without the need for additional cable ties. Additionally these ties are widely used within the packaging industry. The first loop closes and secures the bag whilst the second loop can be made into a carrying handle (subject to weight).

Features

  • Possibility to separate bundles with only one cable tie
  • Cable tie with two heads creating an inside and outside serrated loop
  • Available in a wide range of materials
  • Bundles can be of different diameter
  • Maximum bundle diameter is a maximum combined bundle
  • Easy application either manually or with a processing tool
Products specifications
Attribute name Attribute value
Country of Origin US
Product Family Double Loop Cable Tie
Global Part Number T50LDH-PA66W-BK
Product Base Type T50LDH
Material Abbreviation PA66W
Color Black
Lead Time 16 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 395 mm
Cable Tie Length (Imperial) 15.6 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.4 mm
Max. Bundle Diameter Φ102 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Material Polyamide 6.6, UV-resistant (PA66W)
Flammability UL 94-V2
UV Resistance Yes
EN 45545-2 Classification R22 HL2, R23 HL2
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications EN45545-2
ELV compliant Yes
ROHS compliant Yes
Halogen-free Yes
UL-File Number E64139
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 117-05460 T50LDH-PA66W-BK Drawing PDFCAD_CT2050005CST.pdfDrawing

Datasheet

HellermannTyton 117-05460 T50LDH-PA66W-BK Datasheet PDFTDS_117-05460_com.pdfDatasheet
