156-01196 T50LRR

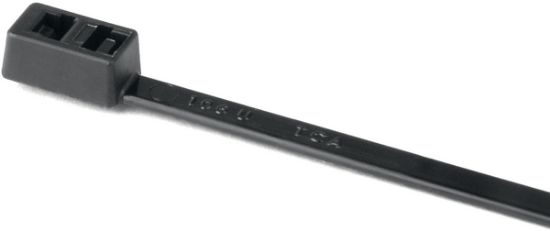

Double Head/Loop Cable Tie, 395.00mmx4.7mm(LxW), Bundle Max. Φ52 mm, 225N Tensile Strength, PA66HS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 156-01196
MPN: T50LRR-PA66HS-BK
Unit Price: $0.6570
Availability: Out of stock - on backorder and will be dispatched once in stock (2 weeks).
Price list
Quantity Net Price /Piece
800 + $0.6570
1000 + $0.6388
1250 + $0.6206
1750 + $0.5931
2500 + $0.5640
3000 + $0.5491
4000 + $0.5256
This product has a minimum quantity of 800
Total Price: $0.6570
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Double loop head ties are ideal for separation of two cable runs without the need for additional cable ties. Additionally these ties are widely used within the packaging industry. The first loop closes and secures the bag whilst the second loop can be made into a carrying handle (subject to weight).

Features

  • Possibility to separate bundles with only one cable tie
  • Cable tie with two heads creating an inside and outside serrated loop
  • Available in a wide range of materials
  • Bundles can be of different diameter
  • Maximum bundle diameter is a maximum combined bundle
  • Easy application either manually or with a processing tool
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Double Loop Cable Tie
Global Part Number T50LRR-PA66HS-BK
Product Base Type T50LRR
Material Abbreviation PA66HS
Color Black
Lead Time 5 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 395 mm
Cable Tie Length (Imperial) 15.6 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Max. Bundle Diameter Φ52 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Material Polyamide 6.6, heat stabilised (PA66HS)
Flammability UL 94-V2
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 156-01196 T50LRR-PA66HS-BK Drawing PDF1108289.pdfDrawing

Datasheet

HellermannTyton 156-01196 T50LRR-PA66HS-BK Datasheet PDFTDS_156-01196_com.pdfDatasheet
