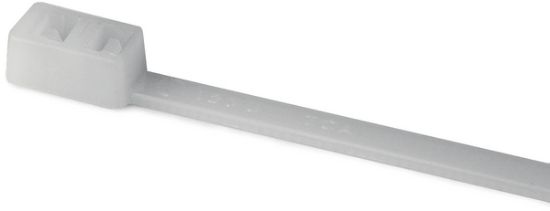

117-05412 T50LDH

Double Head/Loop Cable Tie, 395mmx4.7mm(LxW), Bundle Max. Φ101.6 mm, 225N Tensile Strength, PA66, -40 °C to +85 °C, Nature
Manufacturer: HellermannTyton
Unit Price: $0.3695
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
1750 + $0.3695
2500 + $0.3544
3000 + $0.3468
4000 + $0.3346
5000 + $0.3252
This product has a minimum quantity of 1750
Total Price: $0.3695
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Double loop head ties are ideal for separation of two cable runs without the need for additional cable ties. Additionally these ties are widely used within the packaging industry. The first loop closes and secures the bag whilst the second loop can be made into a carrying handle (subject to weight).

Features

  • Possibility to separate bundles with only one cable tie
  • Cable tie with two heads creating an inside and outside serrated loop
  • Available in a wide range of materials
  • Bundles can be of different diameter
  • Maximum bundle diameter is a maximum combined bundle
  • Easy application either manually or with a processing tool
Products specifications
Attribute name Attribute value
Country of Origin JP
Product Family Double Loop Cable Tie
Global Part Number T50LDH-PA66-NA
Product Base Type T50LDH
Material Abbreviation PA66
Color Nature
Lead Time 16 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 395 mm
Cable Tie Length (Imperial) 15.6 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.4 mm
Max. Bundle Diameter Φ101.6 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Material Polyamide 6.6 (PA66)
Flammability UL 94-V2
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications ANSI/UL 62275
ELV compliant Yes
ROHS compliant Yes
Halogen-free Yes
UL-File Number E64962
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 117-05412 T50LDH-PA66-NA Catalogue PageHT_Automotive_Cat_2024_1_1_050-050_COM.pdfCatalogue

Drawing

HellermannTyton 117-05412 T50LDH-PA66-NA Drawing PDFCAD_CT2050005CST.pdfDrawing

Datasheet

HellermannTyton 117-05412 T50LDH-PA66-NA Datasheet PDFTDS_117-05412_com.pdfDatasheet
