117-05350 T50IDH0HSM4

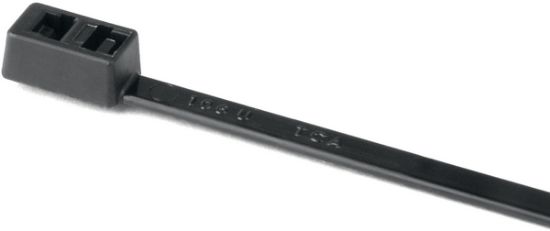

Double Head/Loop Cable Tie, 305mmx4.7mm(LxW), Bundle Max. Φ76 mm, 225N Tensile Strength, PA66HS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
Unit Price: $0.3496
Availability: Out of stock
Price list
Quantity Net Price /Piece
700 + $0.3496
1000 + $0.3350
1250 + $0.3259
1750 + $0.3121
3000 + $0.2901
4000 + $0.2783
5000 + $0.2692
This product has a minimum quantity of 700
Total Price: $0.3496
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Double loop head ties are ideal for separation of two cable runs without the need for additional cable ties. Additionally these ties are widely used within the packaging industry. The first loop closes and secures the bag whilst the second loop can be made into a carrying handle (subject to weight).

Features

  • Possibility to separate bundles with only one cable tie
  • Cable tie with two heads creating an inside and outside serrated loop
  • Available in a wide range of materials
  • Bundles can be of different diameter
  • Maximum bundle diameter is a maximum combined bundle
  • Easy application either manually or with a processing tool
Products specifications
Attribute name Attribute value
Country of Origin US
Product Family Double Loop Cable Tie
Global Part Number T50IDH-PA66HS-BK
Product Base Type T50IDH
Material Abbreviation PA66HS
Color Black
Lead Time 16 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 305 mm
Cable Tie Length (Imperial) 12.0 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.4 mm
Max. Bundle Diameter Φ76 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Material Polyamide 6.6, heat stabilised (PA66HS)
Flammability UL 94-V2
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
ELV compliant Yes
ROHS compliant Yes
Halogen-free Yes
UL-File Number E64139
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 117-05350 T50IDH-PA66HS-BK Catalogue PageHT_Product_Cat_2022_1_1_057-057_COM.pdfCatalogue

Drawing

HellermannTyton 117-05350 T50IDH-PA66HS-BK Drawing PDFCT2050004CST-pdf.pdfDrawing

Datasheet

HellermannTyton 117-05350 T50IDH-PA66HS-BK Datasheet PDFTDS_117-05350_com.pdfDatasheet
