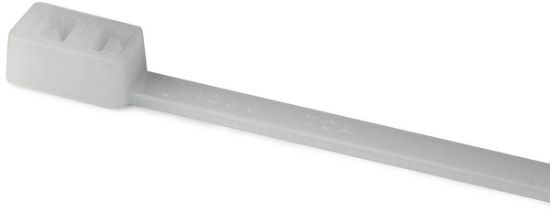

117-00004 T50RDH

Double Head/Loop Cable Tie, 210mmx4.7mm(LxW), Bundle Max. Φ38 mm, 225N Tensile Strength, PA46, -40 °C to +130 °C, Grey
Manufacturer: HellermannTyton
Unit Price: $0.5693
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
1000 + $0.5693
1250 + $0.5535
1750 + $0.5297
3000 + $0.4916
4000 + $0.4712
5000 + $0.4554
This product has a minimum quantity of 1000
Total Price: $0.5693
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Ideal for running two cables in parallel that need to be separated. These ties allow for installation of a second cable run without the need for additional cable ties. The DH ties are also widely used within the packaging industry – the first loop closes and secures the bag, whilst the second loop can be made into a carrying handle (subject to weight).

Features

  • Possibility to separate bundles with only one cable tie
  • Cable tie with two heads creating an inside and outside serrated loop
  • Available in a wide range of materials
  • Bundles can be of different diameter
  • Maximum bundle diameter is a maximum combined bundle
  • Easy application either manually or with a processing tool
Products specifications
Attribute name Attribute value
Country of Origin GB
Product Family Double Loop Cable Tie
Global Part Number T50RDH-PA46-GY
Product Base Type T50RDH
Material Abbreviation PA46
Color Grey
Lead Time 16 Weeks
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 210 mm
Cable Tie Length (Imperial) 8.3 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.4 mm
Max. Bundle Diameter Φ38 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Material Polyamide 4.6 (PA46)
Flammability UL 94-V2
Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 117-00004 T50RDH-PA46-GY Catalogue PageHT_Product_Cat_2022_1_1_057-057_COM.pdfCatalogue

Drawing

HellermannTyton 117-00004 T50RDH-PA46-GY Drawing PDFCAD_CT2050002CST.pdfDrawing

Datasheet

HellermannTyton 117-00004 T50RDH-PA46-GY Datasheet PDFTDS_117-00004_com.pdfDatasheet
