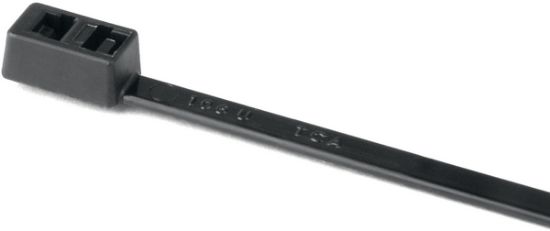

117-00000 T50RDH

Double Head/Loop Cable Tie, 210mmx4.7mm(LxW), Bundle Max. Φ38 mm, 225N Tensile Strength, PA66HS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
Unit Price: $0.2098
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
1000 + $0.2098
1250 + $0.2046
1750 + $0.1967
2500 + $0.1883
3500 + $0.1804
4500 + $0.1745
6000 + $0.1678
This product has a minimum quantity of 1000
Total Price: $0.2098
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Double loop head ties are ideal for separation of two cable runs without the need for additional cable ties. Additionally these ties are widely used within the packaging industry. The first loop closes and secures the bag whilst the second loop can be made into a carrying handle (subject to weight).

Features

  • Possibility to separate bundles with only one cable tie
  • Cable tie with two heads creating an inside and outside serrated loop
  • Available in a wide range of materials
  • Bundles can be of different diameter
  • Maximum bundle diameter is a maximum combined bundle
  • Easy application either manually or with a processing tool
Products specifications
Attribute name Attribute value
Country of Origin GB
Product Family Double Loop Cable Tie
Global Part Number T50RDH-PA66HS-BK
Product Base Type T50RDH
Material Abbreviation PA66HS
Color Black
Lead Time 16 Weeks
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 210 mm
Cable Tie Length (Imperial) 8.3 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.4 mm
Max. Bundle Diameter Φ38 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Material Polyamide 6.6, heat stabilised (PA66HS)
Flammability UL 94-V2
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
ELV compliant Yes
ROHS compliant Yes
Halogen-free Yes
UL-File Number E64963
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 117-00000 T50RDH-PA66HS-BK Catalogue PageHT_Automotive_Products_043-043_COM.pdfCatalogue

Drawing

HellermannTyton 117-00000 T50RDH-PA66HS-BK Drawing PDFCAD_17-0033-001-CSC.pdfDrawing

Datasheet

HellermannTyton 117-00000 T50RDH-PA66HS-BK Datasheet PDFTDS_117-00000_com.pdfDatasheet
