113-05002 T50MR0M4

Name: 113-05002 T50MR0M4
SKU: 113-05002
Price: 0.15 USD
Availability: OutOfStock

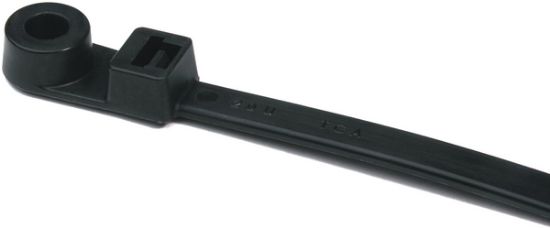

Cable Tie With Screw Mount, 216mmx4.7mm(LxW), M5 Screw, Bundle Max. Φ45 mm, 225N Tensile Strength, PA66, -40 °C to +85 °C, Black

Manufacturer: HellermannTyton

SKU: 113-05002

MPN: T50MR-PA66-BK

Category: Screw Mount Cable Tie

HT_Product_Cat_2022_1_12_163-163_COM.pdfCatalogue

CAD_CT2050003CST.pdfDrawing

TDS_113-05002_com.pdfDatasheet

Unit Price: $0.1498

Availability: Out of stock

Price list

Quantity	Net Price /Piece
900 +	$0.1498
1500 +	$0.1439
2000 +	$0.1406
3000 +	$0.1359
5000 +	$0.1301
7500 +	$0.1254
10000 +	$0.1221
18000 +	$0.1153

This product has a minimum quantity of 900

Qty:

Total Price: $0.1498

Request a free, non-obligation quote today

Create your individual quote quickly and easily

Full Description

This range of one piece cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The tie is fitted to the panel first and then the cables can be added.

Features

One-piece bundling and fixing tie
Quick and easy installation

Products specifications

Attribute name	Attribute value
Country of Origin	US
Product Family	Screw Mount Cable Tie
Global Part Number	T50MR-PA66-BK
Product Base Type	T50MR
Material Abbreviation	PA66
Color	Black
Lead Time	16 Weeks
Tie Closure	Plastic Pawl
Variant	Inside Serrated
Cable Tie Length (Metric)	216 mm
Cable Tie Length (Imperial)	8.5 inch
Cable Tie Width (Metric)	4.7 mm
Cable Tie Width (Imperial)	0.19 inch
Tie Strap Thickness	1.2 mm
Max. Bundle Diameter	Φ45 mm
Min. Tensile Strength (Metric)	225N
Min. Tensile Strength (Imperial)	50 Lbs (22.9 Kgf)
Mounting Type	Screw Mount
Mounting Screw Type	M5 Screw
Material	Polyamide 6.6 (PA66)
Flammability	UL 94-V2
Operating Temperature	-40 °C to +85 °C, (+105 °C, 500 h)
Specifications	UL 62275
ELV compliant	Yes
ROHS compliant	Yes
UL-File Number	E64139
Manufacturer	HellermannTyton
Product Unit	Piece
Catalogue	HT_Product_Cat_2022_1_12_163-163_COM.pdfCatalogue
Drawing	CAD_CT2050003CST.pdfDrawing
Datasheet	TDS_113-05002_com.pdfDatasheet
