111-01948 MBT14H

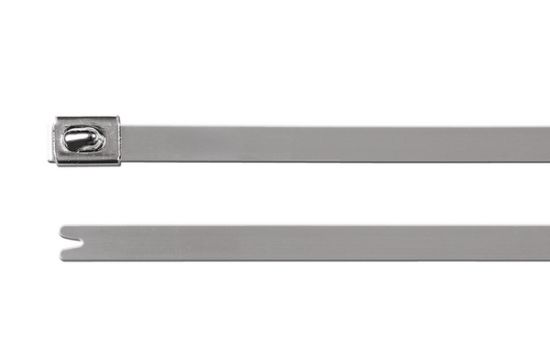

Heavy-Duty Stainless Steel Cable Tie, 362mmx7.9mm(LxW), Bundle Max. Φ102 mm, 2000N Tensile Strength, SS316, -80 °C to +538 °C, Metal Color
Manufacturer: HellermannTyton
SKU: 111-01948
MPN: MBT14H-SS316-ML
Product Family: MBT-Series, stainless steel 316
Unit Price: $0.8569
Availability: 600 in stock
Price list
Quantity Net Price /Piece
250 + $0.8569
300 + $0.8395
500 + $0.7906
750 + $0.7518
1000 + $0.7243
1250 + $0.7029
1500 + $0.6855
This product has a minimum quantity of 250
Total Price: $0.8569
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Metal ties are predestined for all areas with requirements for high holding force, reliability and fire resistance. The MBT range of stainless steel cable ties can be used in chemical industry and on oil platform as well as in mass transit, shipbuilding and mining industry. MBT ties are also suitable for machine building, apparatus construction and in the outside area of radio technology. Additionally MBT ties are a good solution to fix lighting in theatres and exhibition halls.

Features

  • MBT cable ties made from stainless steel 316L
  • Non-releasable locking feature
  • Corrosion resistant
  • Weather resistant
  • Outstanding chemical resistance
  • High temperature resistant
  • Non-burning
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family MBT-Series, stainless steel 316
Global Part Number MBT14H-SS316-ML
Product Base Type MBT14H
Material Abbreviation SS316
Color Metal Color
Lead Time 5 Weeks
Tie Closure Ball Bearing lock
Variant Not Serrated
Cable Tie Length (Metric) 362 mm
Cable Tie Length (Imperial) 14.3 inch
Cable Tie Width (Metric) 7.9 mm
Cable Tie Width (Imperial) 0.31 inch
Tie Strap Thickness 0.27 mm
Max. Bundle Diameter Φ102 mm
Min. Tensile Strength (Metric) 2000N
Min. Tensile Strength (Imperial) 450 Lbs (203.9 Kgf)
Material Stainless Steel (SS316)
Flammability Non-Burning
UV Resistance Yes
Chemical Resistance Yes
Operating Temperature -80 °C to +538 °C
Specifications IEC 60092 series
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 111-01948 MBT14H-SS316-ML Catalogue PageHT_Product_Cat_2022_1_5_081-082_COM.pdfCatalogue

Drawing

HellermannTyton 111-01948 MBT14H-SS316-ML Drawing PDFCAD_141328.pdfDrawing

Datasheet

HellermannTyton 111-01948 MBT14H-SS316-ML Datasheet PDFTDS_111-01948_com.pdfDatasheet
