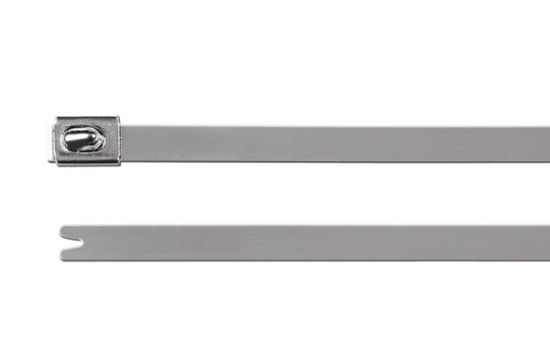

111-01947 MBT27S

Stainless Steel Cable Tie, 681mmx4.6mm(LxW), Bundle Max. Φ203 mm, 900N Tensile Strength, SS316, -80 °C to +538 °C, Metal Color
Manufacturer: HellermannTyton
SKU: 111-01947
MPN: MBT27S-SS316-ML
Product Family: MBT-Series, stainless steel 316
Unit Price: $1.7077
Availability: Out of stock - on backorder and will be dispatched once in stock (2 weeks).
Price list
Quantity Net Price /Piece
200 + $1.7077
250 + $1.6642
400 + $1.5726
500 + $1.5291
750 + $1.4500
1000 + $1.3939
1250 + $1.3504
1500 + $1.3149
This product has a minimum quantity of 200
Total Price: $1.7077
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Metal ties are predestined for all areas with requirements for high holding force, reliability and fire resistance. The MBT range of stainless steel cable ties can be used in chemical industry and on oil platform as well as in mass transit, shipbuilding and mining industry. MBT ties are also suitable for machine building, apparatus construction and in the outside area of radio technology. Additionally MBT ties are a good solution to fix lighting in theatres and exhibition halls.

Features

  • MBT cable ties made from stainless steel 316L
  • Non-releasable locking feature
  • Corrosion resistant
  • Weather resistant
  • Outstanding chemical resistance
  • High temperature resistant
  • Non-burning
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family MBT-Series, stainless steel 316
Global Part Number MBT27S-SS316-ML
Product Base Type MBT27S
Material Abbreviation SS316
Color Metal Color
Lead Time 5 Weeks
Tie Closure Ball Bearing lock
Variant Not Serrated
Cable Tie Length (Metric) 681 mm
Cable Tie Length (Imperial) 26.8 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 0.27 mm
Max. Bundle Diameter Φ203 mm
Min. Tensile Strength (Metric) 900N
Min. Tensile Strength (Imperial) 202 Lbs (91.8 Kgf)
Material Stainless Steel (SS316)
Flammability Non-Burning
UV Resistance Yes
Chemical Resistance Yes
Operating Temperature -80 °C to +538 °C
Specifications ANSI/UL 1565, ANSI/UL 62275, EN 62275, IEC 60092 series
ELV compliant Yes
ROHS compliant Yes
UL-File Number E193818
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 111-01947 MBT27S-SS316-ML Catalogue PageHT_Product_Cat_2022_1_5_081-082_COM.pdfCatalogue

Drawing

HellermannTyton 111-01947 MBT27S-SS316-ML Drawing PDFCAD_11-0551-001-CSC.pdfDrawing

Datasheet

HellermannTyton 111-01947 MBT27S-SS316-ML Datasheet PDFTDS_111-01947_com.pdfDatasheet
