157-00506 T50ROSFTQM6

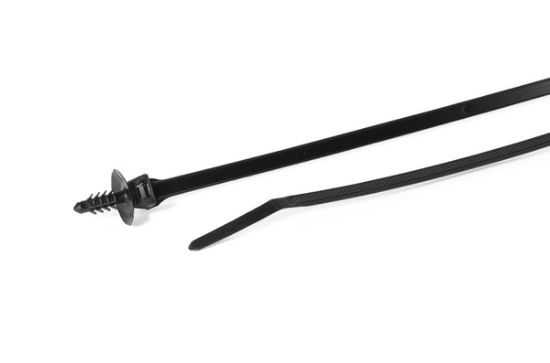

Cable Tie With Fir Tree Mount, 203.2mmx5.08mm(LxW), For M6 Hole, Bundle Max. Φ50 mm, 222N Tensile Strength, PA66HIRHSUV, -40 °C to +110 °C, Black
Manufacturer: HellermannTyton
SKU: 157-00506
MPN: T50ROSFTQM6-PA66HIRHSUV-BK
Product Family: Fir Tree Cable Tie For Round Hole
Unit Price: $0.1349
Availability: Out of stock
Price list
Quantity Net Price /Piece
500 + $0.1349
750 + $0.1312
1250 + $0.1265
2000 + $0.1223
3500 + $0.1172
6000 + $0.1123
9000 + $0.1086
15000 + $0.1039
This product has a minimum quantity of 500
Total Price: $0.1349
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Products specifications
Attribute name Attribute value
Country of Origin US
Product Family Fir Tree Cable Tie For Round Hole
Global Part Number T50ROSFTQM6-PA66HIRHSUV-BK
Product Base Type T50ROSFTQM6
Material Abbreviation PA66HIRHSUV
Color Black
Lead Time 16 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 203.2 mm
Cable Tie Length (Imperial) 8.0 inch
Cable Tie Width (Metric) 5.08 mm
Cable Tie Width (Imperial) 0.20 inch
Tie Strap Thickness 1.5 mm
Max. Bundle Diameter Φ50 mm
Min. Tensile Strength (Metric) 222N
Min. Tensile Strength (Imperial) 50 Lbs (22.6 Kgf)
Mounting Type Fir Tree Mount
Fixing Hole Shape Circular Hole
Fitting Hole Diameter M6
Fitting Panel Thickness 3.3-7.0 mm
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Flammability UL 94-HB
UV Resistance Yes
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 157-00506 T50ROSFTQM6-PA66HIRHSUV-BK Catalogue PageHT_Product_Cat_2022_1_6_104-105_COM.pdfCatalogue

Drawing

HellermannTyton 157-00506 T50ROSFTQM6-PA66HIRHSUV-BK Drawing PDFCAD_10-0538-003CST.pdfDrawing

Datasheet

HellermannTyton 157-00506 T50ROSFTQM6-PA66HIRHSUV-BK Datasheet PDFTDS_157-00506_com.pdfDatasheet
