157-00147 T50SOSFT6E1

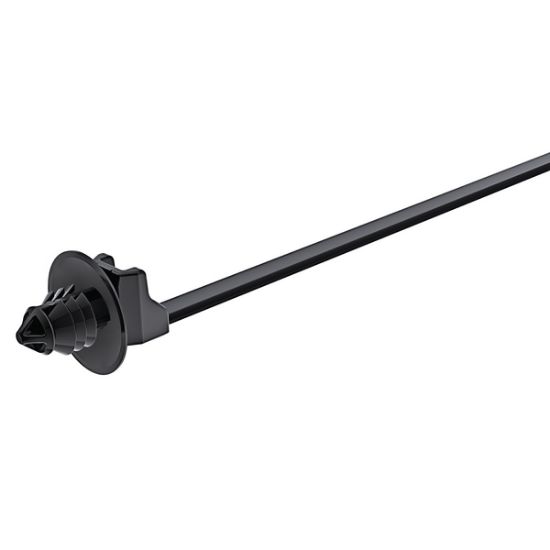

Cable Tie With Fir Tree Mount, 161.4mmx4.7mm(LxW), For 6.3-7.0mm Hole, Bundle Max. Φ35 mm, 150N Tensile Strength, PA66, -40 °C to +85 °C, Nature
Manufacturer: HellermannTyton
SKU: 157-00147
MPN: T50SOSFT6E1-PA66-NA
Product Family: Fir Tree Cable Tie For Round Hole
Unit Price: $0.0999
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
750 + $0.0999
1250 + $0.0968
2000 + $0.0939
4000 + $0.0897
6000 + $0.0872
10000 + $0.0841
20000 + $0.0799
This product has a minimum quantity of 750
Total Price: $0.0999
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Products specifications
Attribute name Attribute value
Country of Origin SG
Product Family Fir Tree Cable Tie For Round Hole
Global Part Number T50SOSFT6E1-PA66-NA
Product Base Type T50SOSFT6E1
Material Abbreviation PA66
Color Nature
Lead Time 16 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 161.4 mm
Cable Tie Length (Imperial) 6.4 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.35 mm
Max. Bundle Diameter Φ35 mm
Min. Tensile Strength (Metric) 150N
Min. Tensile Strength (Imperial) 34 Lbs (15.3 Kgf)
Mounting Type Fir Tree Mount
Fixing Hole Shape Circular Hole
Fitting Hole Diameter 6.3-7.0mm
Fitting Panel Thickness 0.7-3.0 mm
Material Polyamide 6.6 (PA66)
Flammability UL 94-V2
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 157-00147 T50SOSFT6E1-PA66-NA Drawing PDFCAD_07-0345-001-CSH.pdfDrawing

Datasheet

HellermannTyton 157-00147 T50SOSFT6E1-PA66-NA Datasheet PDFTDS_157-00147_com.pdfDatasheet
