157-00068 OS180FT7LH

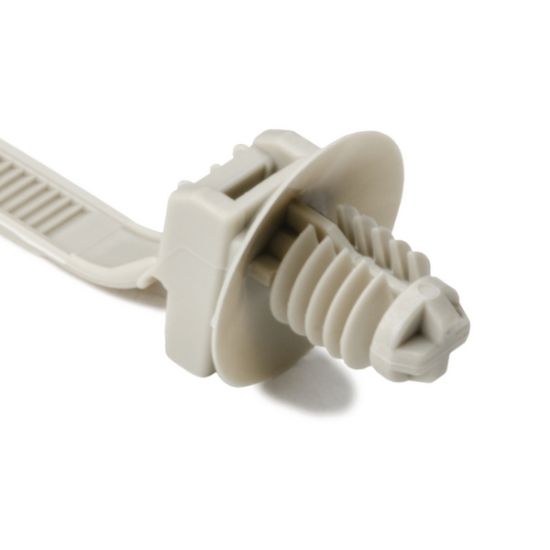

Cable Tie With Fir Tree Mount, 180mmx5.3mm(LxW), For 6.35mm(六角形), 6.5-7.0mm Hole, Bundle Max. Φ30 mm, 200N Tensile Strength, PA66, -40 °C to +85 °C, Grey
Manufacturer: HellermannTyton
SKU: 157-00068
MPN: OS180FT7LH-PA66-GY
Product Family: Fir Tree Cable Tie For Round Hole
Unit Price: $0.0899
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
1500 + $0.0899
2500 + $0.0874
4500 + $0.0846
8000 + $0.0819
15000 + $0.0789
25000 + $0.0764
This product has a minimum quantity of 1500
Total Price: $0.0899
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Products specifications
Attribute name Attribute value
Country of Origin SG
Product Family Fir Tree Cable Tie For Round Hole
Global Part Number OS180FT7LH-PA66-GY
Product Base Type OS180FT7LH
Material Abbreviation PA66
Color Grey
Lead Time 16 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 180 mm
Cable Tie Length (Imperial) 7.1 inch
Cable Tie Width (Metric) 5.3 mm
Cable Tie Width (Imperial) 0.21 inch
Tie Strap Thickness 1.4 mm
Max. Bundle Diameter Φ30 mm
Min. Tensile Strength (Metric) 200N
Min. Tensile Strength (Imperial) 45 Lbs (20.4 Kgf)
Mounting Type Fir Tree Mount
Fixing Hole Shape Circular Hole
Fitting Hole Diameter 6.5-7.0mm, 6.35mm(hexagonal)
Fitting Panel Thickness 0.6-4.5 mm
Material Polyamide 6.6 (PA66)
Flammability UL 94-V2
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 157-00068 OS180FT7LH-PA66-GY Catalogue PageHT_Product_Cat_2022_1_6_104-105_COM.pdfCatalogue

Drawing

HellermannTyton 157-00068 OS180FT7LH-PA66-GY Drawing PDFCAD_10-0869-001-CSH.pdfDrawing

Datasheet

HellermannTyton 157-00068 OS180FT7LH-PA66-GY Datasheet PDFTDS_157-00068_com.pdfDatasheet
