156-04005 T50RCOUPLER

Multiple Routing Cable Tie With Coupler, 202mmx4.6mm(LxW), Bundle Max. Φ47 mm, 225N Tensile Strength, PA46, -40 °C to +130 °C, Grey
Manufacturer: HellermannTyton
SKU: 156-04005
MPN: T50RCOUPLER-PA46-GY
Product Family: Cable Tie For Parallel Separation
Unit Price: $0.6092
Availability: Out of stock
Price list
Quantity Net Price /Piece
2000 + $0.6092
3000 + $0.5878
4000 + $0.5726
This product has a minimum quantity of 2000
Total Price: $0.6092
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

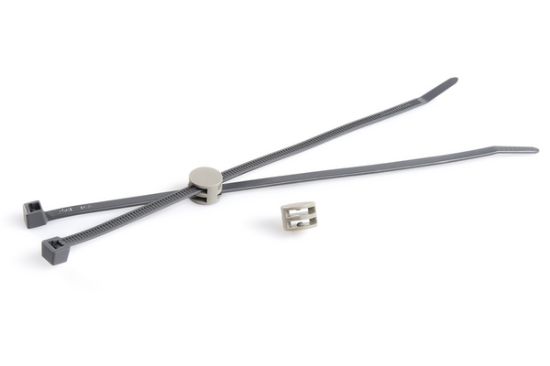

The Coupler is the simple way to connect two cable ties for a parallel routing of two bundles. His special design allows the ties 90 degrees of rotation. This is ideal for all applications where the cable, pipe or hose should move flexible in relation to the fixing point. The Coupler can be used with one or two cable ties. This allows easily subsequent installation or replacements of further cables, pipes or hose.

Features

  • Pre-assembled 2-piece fixing tie with coupler
  • Cable tie head can be moved after bundling
  • Easy addition of cables after assembly
  • For parallel routing of bundles that can be twisted 90° even after installation
Products specifications
Attribute name Attribute value
Country of Origin US
Product Family Cable Tie For Parallel Separation
Global Part Number T50RCOUPLER-PA46-GY
Product Base Type T50RCOUPLER
Material Abbreviation PA46
Color Grey
Lead Time 16 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 202 mm
Cable Tie Length (Imperial) 8.0 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.2 mm
Max. Bundle Diameter Φ47 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Material Polyamide 4.6 (PA46)
Flammability UL 94-V2
Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 156-04005 T50RCOUPLER-PA46-GY Catalogue PageHT_Product_Cat_2022_1_8_138-138_COM.pdfCatalogue

Drawing

HellermannTyton 156-04005 T50RCOUPLER-PA46-GY Drawing PDFCAD_08-0617-002-CSF.pdfDrawing

Datasheet

HellermannTyton 156-04005 T50RCOUPLER-PA46-GY Datasheet PDFTDS_156-04005_com.pdfDatasheet
