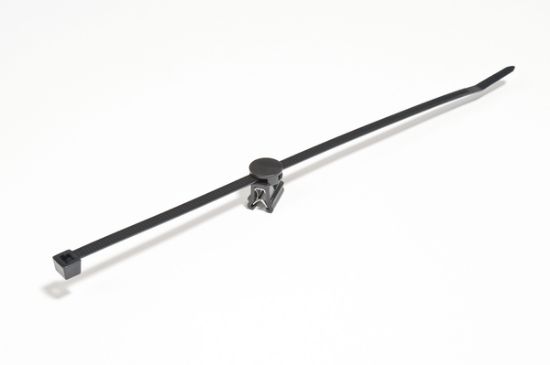

156-01601 CBTO50R

Cable Tie With Edge Clip, 202mmx4.6mm(LxW), Bundle Max. Φ47 mm, 225N Tensile Strength, PA66HS/PA66HIRHS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
Unit Price: $0.9987
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
600 + $0.9987
750 + $0.9717
1000 + $0.9369
1250 + $0.9098
1750 + $0.8691
2500 + $0.8259
3000 + $0.8038
4000 + $0.7690
This product has a minimum quantity of 600
Total Price: $0.9987
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or or where adhesives will fail due to temperature problems. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.

Features

  • Easy assembly, just clip on per hand ?
  • For edges of 1 – 3 mm
  • Integrated metal clamp holds clip firmly in place
  • Clamp consists of double tempered steel spring
  • Ideal for applications where holes or adhesives are not suitable
Products specifications
Attribute name Attribute value
Country of Origin FR
Product Family Edge Clip Cable Tie
Global Part Number CBTO50R-PA66HS/PA66HIRHS-BK
Product Base Type CBTO50R
Material Abbreviation PA66HS/PA66HIRHS
Color Black
Lead Time 16 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 202 mm
Cable Tie Length (Imperial) 8.0 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.2 mm
Max. Bundle Diameter Φ47 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Mounting Type Edge Clip Mount
Fitting Panel Thickness 1.0-3.0 mm
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability UL 94-V2 (Foot Part: UL 94-HB)
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 156-01601 CBTO50R-PA66HS/PA66HIRHS-BK Catalogue PageHT_Product_Cat_2022_1_13_198-198_COM.pdfCatalogue

Drawing

HellermannTyton 156-01601 CBTO50R-PA66HS/PA66HIRHS-BK Drawing PDFXCT-HMAN161CST-pdf.pdfDrawing

Datasheet

HellermannTyton 156-01601 CBTO50R-PA66HS/PA66HIRHS-BK Datasheet PDFTDS_156-01601_com.pdfDatasheet
