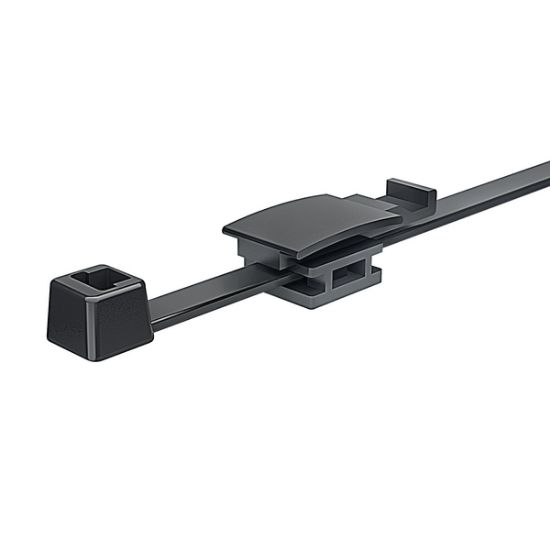

156-01430 T50RYCCB

Cable Tie With Connector Clip, 200mmx4.6mm(LxW), Bundle Max. Φ50 mm, 225N Tensile Strength, PA66HS/PA66HIRHS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
Unit Price: $1.0950
Availability: Out of stock - on backorder and will be dispatched once in stock (2 weeks).
Price list
Quantity Net Price /Piece
600 + $1.0950
750 + $1.0646
1000 + $1.0255
1250 + $0.9951
1750 + $0.9493
2500 + $0.9008
3000 + $0.8760
This product has a minimum quantity of 600
Total Price: $1.0950
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

These two piece fixing ties with connector clips have been designed for electronic cables and cable sets used in the automotve industry. The connector are pushed onto the connector clip and hold firmly in place.

Features

  • Easy to assemble without a need for a tool
  • Preassembled cable tie with connector clip
  • Connector can be removed without damage
  • Rattle-free mounting
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Connector Clip Cable Tie
Global Part Number T50RYCCB-PA66HS/PA66HIRHS-BK
Product Base Type T50RYCCB
Material Abbreviation PA66HS/PA66HIRHS
Color Black
Lead Time 5 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 200 mm
Cable Tie Length (Imperial) 7.9 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.2 mm
Max. Bundle Diameter Φ50 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Mounting Type Connector Clip Mount
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability UL 94-V2 (Foot Part: UL 94-HB)
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 156-01430 T50RYCCB-PA66HS/PA66HIRHS-BK Catalogue PageHT_Automotive_Products_111-111_COM.pdfCatalogue

Drawing

HellermannTyton 156-01430 T50RYCCB-PA66HS/PA66HIRHS-BK Drawing PDFCAD_11-0711-001-CSC.pdfDrawing

Datasheet

HellermannTyton 156-01430 T50RYCCB-PA66HS/PA66HIRHS-BK Datasheet PDFTDS_156-01430_com.pdfDatasheet
