151-03066 PLUGFTOVAL

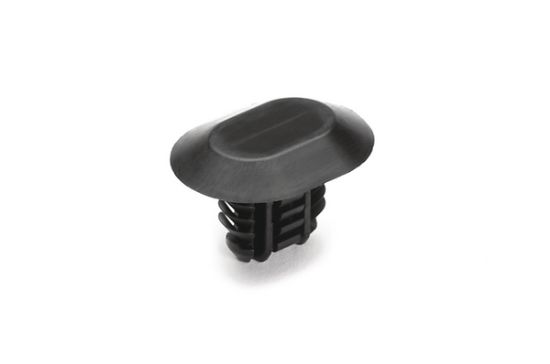

Blinding Plug With Fir Tree Mount, For 6.2x12.2mm, 6.5x12.5mm, 6.5x13.0mm, 7.0x12.0mm Hole, PA66HIRHS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 151-03066
MPN: PLUGFTOVAL-PA66HIRHS-BK
Product Family: Blind Plug For Oval Hole
Category: Cable Routing Clip
Unit Price: $0.1498
Availability: 10000 in stock
Price list
Quantity Net Price /Piece
900 + $0.1498
1500 + $0.1444
2500 + $0.1389
3500 + $0.1353
6000 + $0.1296
9000 + $0.1252
15000 + $0.1198
This product has a minimum quantity of 900
Total Price: $0.1498
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Products were developed especially for the automotive industry. Application in trunks, doors, wheel housing and dash panels. Parts are even used for optical reasons.

Features

  • Easy assembly without the need of a tool
  • Disc of the part covers the hole and minimises ingress of dust, dirt and water
  • Standard geometry for example fir tree or arrowhead
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Blind Plug For Oval Hole
Global Part Number PLUGFTOVAL-PA66HIRHS-BK
Product Base Type PLUGFTOVAL
Material Abbreviation PA66HIRHS
Color Black
Lead Time 5 Weeks
Width (Metric) 17.63 mm
Width (Imperial) 0.69 inch
Mounting Type Plug-in Mount
Fixing Hole Shape Oval Hole
Fitting Hole Diameter 6.2x12.2mm, 6.5x12.5mm, 6.5x13.0mm, 7.0x12.0mm
Fitting Panel Thickness 0.6-6.0 mm
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability UL 94-HB
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 151-03066 PLUGFTOVAL-PA66HIRHS-BK Catalogue PageHT_Automotive_Cat_2024_1_6_139-140_COM.pdfCatalogue

Drawing

HellermannTyton 151-03066 PLUGFTOVAL-PA66HIRHS-BK Drawing PDFCAD_19-0773-001-CSC.pdfDrawing
