151-02244 MB3APT-A

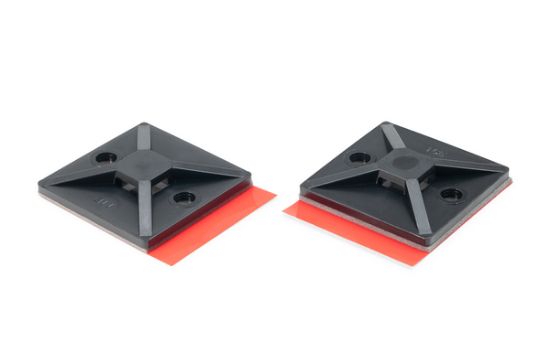

Adhesive Cable Tie Mounting Base, 4-Way Opening, Used with T18-T30 Series Cable Tie, 19mmx19.0mm(LxW), PA66, -40 °C to +85 °C, Black
Manufacturer: HellermannTyton
SKU: 151-02244
MPN: MB3APT-A-PA66-BK
Product Family: Self-Adhesive Cable Tie Mount
Category: Cable Tie Mount
Unit Price: $0.7191
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
100 + $0.7191
150 + $0.6999
250 + $0.6756
400 + $0.6533
500 + $0.6428
1000 + $0.6099
1500 + $0.5907
2500 + $0.5664
4000 + $0.5441
6000 + $0.5249
This product has a minimum quantity of 100
Total Price: $0.7191
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

SolidTack MB Series mounts have a square design and are fairly common in areas like electrical cabinet, railway, aerospace, automotive and agriculture machinery. The premium self-adhesive bonds well on high and low-energy surfaces like plastics, metal, varnish or paint and is suitable for a wide range of applications.

Features

  • MB mounts with homogeneous system of acrylic adhesive
  • Very good initial adhesion, increases with time
  • Innovative fixing solution for high and low energy surfaces
  • Protection foil with finger lift for easy peel off
Products specifications
Attribute name Attribute value
Country of Origin PL
Product Family Self-Adhesive Cable Tie Mount
Global Part Number MB3APT-A-PA66-BK
Product Base Type MB3APT-A
Material Abbreviation PA66
Color Black
Lead Time 16 Weeks
Width (Metric) 19 mm
Width (Imperial) 0.75 inch
Length (Metric) 19 mm
Length (Imperial) 0.7 inch
Mounting Type Self-Adhesive Mount
Material Polyamide 6.6 (PA66)
Flammability UL 94-V2
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Halogen-free Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 151-02244 MB3APT-A-PA66-BK Catalogue PageHT_Product_Cat_2022_1_9_145-145_COM.pdfCatalogue

Drawing

HellermannTyton 151-02244 MB3APT-A-PA66-BK Drawing PDFCAD_11-0679-003-CSG.pdfDrawing

Datasheet

HellermannTyton 151-02244 MB3APT-A-PA66-BK Datasheet PDFTDS_151-02244_com.pdfDatasheet
