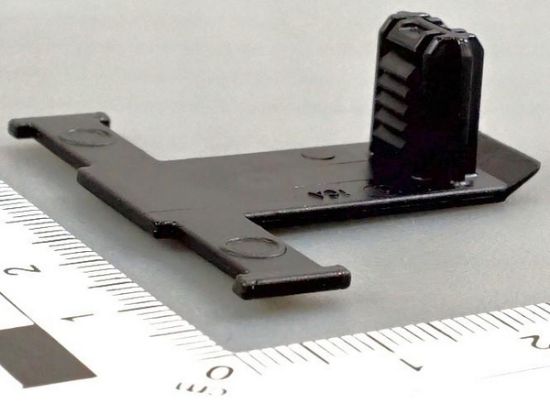

151-01534 SOC23.5FT6.2x12.2

Bundling Clip With Fir Tree Mount, For 6.2x12.2mm Hole, Bar Length 43.6 mm, Offset 23.5 mm, PA66HIRHS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 151-01534
MPN: SOC23.5FT6.2x12.2-PA66HIRHS-BK
Product Family: Bundling Clip For Oval Hole
Category: Bundling Clip
Unit Price: $0.3650
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
1000 + $0.3650
1250 + $0.3549
1750 + $0.3396
3000 + $0.3152
4000 + $0.3021
5000 + $0.2920
This product has a minimum quantity of 1000
Total Price: $0.3650
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.

Features

  • Simple installation, tool-free
  • Is attached to the bundle element with cable ties or adhesive tape
  • The oval base geometry serves as anti-twist protection and for defined cable routing
Products specifications
Attribute name Attribute value
Country of Origin DE
Product Family Bundling Clip For Oval Hole
Global Part Number SOC23.5FT6.2x12.2-PA66HIRHS-BK
Product Base Type SOC23.5FT6.2x12.2
Material Abbreviation PA66HIRHS
Color Black
Lead Time 16 Weeks
Bundling Bar Length 43.6 mm
Offset Length 23.5 mm
Mounting Type Fir Tree Mount
Fixing Hole Shape Oval Hole
Fitting Hole Diameter 6.2x12.2mm
Fitting Panel Thickness 0.6-6.0 mm
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability UL 94-HB
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 151-01534 SOC23.5FT6.2x12.2-PA66HIRHS-BK Catalogue PageHT_Automotive_Cat_2024_1_7_154-154_COM.pdfCatalogue

Drawing

HellermannTyton 151-01534 SOC23.5FT6.2x12.2-PA66HIRHS-BK Drawing PDFCAD_15-0104-001-CSG.pdfDrawing

Datasheet

HellermannTyton 151-01534 SOC23.5FT6.2x12.2-PA66HIRHS-BK Datasheet PDFTDS_151-01534_com.pdfDatasheet
