151-01259 CCOVAL

Name: 151-01259 CCOVAL
SKU: 151-01259
Price: 0.06 USD
Availability: OutOfStock

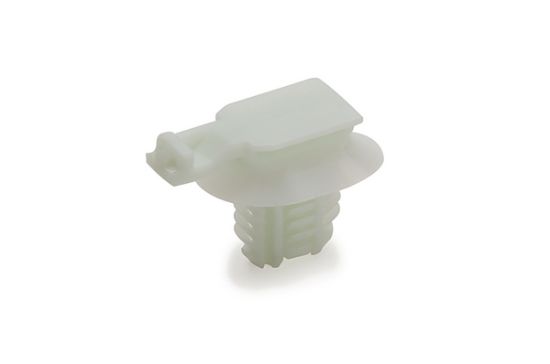

Automotive Connector Mounting Clip With Fir Tree Mount, For 6.2-12.2mm, 6.5x12.5mm, 6.5x13.0mm, 7.0x12.0mm Hole, PA66HIRHS, -40 °C to +105 °C, Nature

Manufacturer: HellermannTyton

SKU: 151-01259

MPN: CCOVAL-PA66HIRHS-NA

Product Family: Connector Clip For Oval Hole

Category: Connector Mounting Clip

Unit Price: $0.0590

Availability: Out of stock

This product has a minimum quantity of 3000

Qty:

Total Price: $0.0590

Create your individual quote quickly and easily

Full Description

One clip to connect common connectors

Features

The fir tree branch design on all four sides makes a 360-degree interface with the panel, creating a more secure fit into the hole.
The disc on the top of the fir tree covers the hole and minimizes the ingress of water and dirt.
The oval hole fir tree fits 4 common automotive oval hole sizes.
The specific connector slot on this part reduces rattle and movement of clip to the wire harness connector.

Products specifications

Attribute name	Attribute value
Country of Origin	US
Product Family	Connector Clip For Oval Hole
Global Part Number	CCOVAL-PA66HIRHS-NA
Product Base Type	CCOVAL
Material Abbreviation	PA66HIRHS
Color	Nature
Lead Time	16 Weeks
Width (Metric)	17.63 mm
Width (Imperial)	0.69 inch
Mounting Type	Fir Tree Mount
Fixing Hole Shape	Oval Hole
Fitting Hole Diameter	6.2x12.2mm, 6.5x12.5mm, 6.5x13.0mm, 7.0x12.0mm
Fitting Panel Thickness	0.6-6.0 mm
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability	UL 94-HB
Operating Temperature	-40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant	Yes
ROHS compliant	Yes
Manufacturer	HellermannTyton
Product Unit	Piece
Drawing	CAD_11-0156-001-CST.pdfDrawing
Datasheet	TDS_151-01259_com.pdfDatasheet
