132-00039 BHT375M

Chassis Cable Tie For Single Hole Application, 375mmx7.6mm(LxW), For 8.5-14.0mm Hole, Bundle Max. Φ100 mm, 700N Tensile Strength, PA66HS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
Unit Price: $0.4894
Availability: 20000 in stock
Price list
Quantity Net Price /Piece
200 + $0.4894
300 + $0.4752
500 + $0.4573
750 + $0.4432
1250 + $0.4253
2000 + $0.4089
3000 + $0.3947
5000 + $0.3768
This product has a minimum quantity of 200
Total Price: $0.4894
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

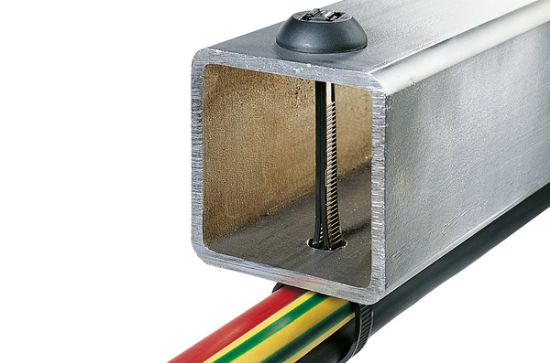

Using a single hole these 'chassis ties' are widely used in the automotive, truck and heavy equipment markets. Ideal for applications which have access to both sides of the hole - example truck frame rails.

Features

  • Both sides serrated cable tie
  • BHT-Series with round head for larger bearing area
  • BHT375 for centred position
  • CT- and LHT-Series with small squared head for restricted space areas
  • Tensioning with application tool
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Chassis Cable Tie
Global Part Number BHT375M-PA66HS-BK
Product Base Type BHT375M
Material Abbreviation PA66HS
Color Black
Lead Time 5 Weeks
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 375 mm
Cable Tie Length (Imperial) 14.8 inch
Cable Tie Width (Metric) 7.6 mm
Cable Tie Width (Imperial) 0.30 inch
Tie Strap Thickness 1.5 mm
Max. Bundle Diameter Φ100 mm
Min. Tensile Strength (Metric) 700N
Min. Tensile Strength (Imperial) 157 Lbs (71.4 Kgf)
Mounting Type Fixing Hole
Fixing Hole Shape Circular Hole
Fitting Hole Diameter 8.5-14.0mm
Material Polyamide 6.6, heat stabilised (PA66HS)
Flammability UL 94-V2
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 132-00039 BHT375M-PA66HS-BK Catalogue PageHT_Automotive_Cat_2024_1_6_118-118_COM.pdfCatalogue

Drawing

HellermannTyton 132-00039 BHT375M-PA66HS-BK Drawing PDFCAD_96-0364-002-CSC.pdfDrawing

Datasheet

HellermannTyton 132-00039 BHT375M-PA66HS-BK Datasheet PDFTDS_132-00039_com.pdfDatasheet
