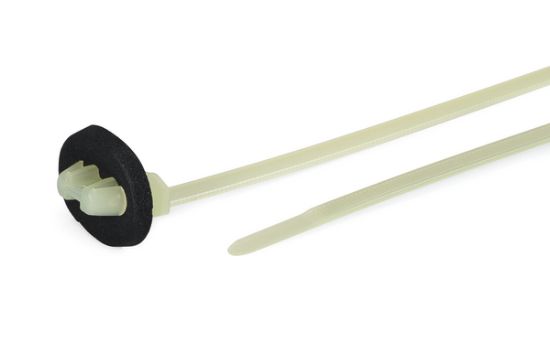

126-00172 T60SOSSFT65x130-E-MD

Cable Tie With Push Mount, Sealed, 157mmx5.5mm(LxW), For 6.5x13.0mm Hole, Bundle Max. Φ30 mm, 300N Tensile Strength, PA66HS, -40 °C to +105 °C, Nature
Manufacturer: HellermannTyton
SKU: 126-00172
MPN: T60SOSSFT65x130-E-MD-PA66HS-NA
Product Family: Push Mount Cable Tie For Oval Hole (Sealed)
Unit Price: $0.2697
Availability: 8000 in stock
Price list
Quantity Net Price /Piece
600 + $0.2697
1000 + $0.2617
1750 + $0.2530
3000 + $0.2445
5000 + $0.2365
8000 + $0.2292
This product has a minimum quantity of 600
Total Price: $0.2697
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

The parts are mainly used in the automotive industry, e.g. for door harnesses.

Features

  • Easy to assemble without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts the tie for pressures from various directions
  • Cable tie head always situated in defined position
  • Cellular rubber seal minimises access of dust and dirt
  • SFT versions for oval holes feature anti-twist protection
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Push Mount Cable Tie For Oval Hole (Sealed)
Global Part Number T60SOSSFT65x130-E-MD-PA66HS-NA
Product Base Type T60SOSSFT65x130-E-MD
Material Abbreviation PA66HS
Color Nature
Lead Time 5 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Sealed Yes
Cable Tie Length (Metric) 157 mm
Cable Tie Length (Imperial) 6.2 inch
Cable Tie Width (Metric) 5.5 mm
Cable Tie Width (Imperial) 0.22 inch
Tie Strap Thickness 1.35 mm
Max. Bundle Diameter Φ30 mm
Min. Tensile Strength (Metric) 300N
Min. Tensile Strength (Imperial) 67 Lbs (30.6 Kgf)
Mounting Type Push Mount
Fixing Hole Shape Oval Hole
Fitting Hole Diameter 6.5x13.0mm
Fitting Panel Thickness 0.6-2.0 mm
Material Polyamide 6.6, heat stabilised (PA66HS)
Flammability UL 94-V2
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 126-00172 T60SOSSFT65x130-E-MD-PA66HS-NA Catalogue PageHT_Automotive_Cat_2024_1_6_096-096_COM.pdfCatalogue

Drawing

HellermannTyton 126-00172 T60SOSSFT65x130-E-MD-PA66HS-NA Drawing PDFCAD_05-0115-004-CSH.pdfDrawing

Datasheet

HellermannTyton 126-00172 T60SOSSFT65x130-E-MD-PA66HS-NA Datasheet PDFTDS_126-00172_com.pdfDatasheet
