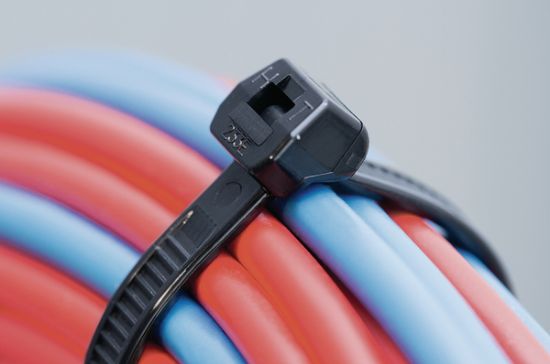

118-05050 T50ROS

Standard Cable Tie, Outside Serrated, 200mmx4.6mm(LxW), Bundle Max. Φ50 mm, 225N Tensile Strength, PA66HS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 118-05050
MPN: T50ROS-PA66HS-BK
Product Family: Outside Serrated Cable Tie
Category: Standard Cable Tie
Unit Price: $0.0969
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
1250 + $0.0969
1750 + $0.0942
3000 + $0.0899
4000 + $0.0875
6000 + $0.0843
9000 + $0.0810
15000 + $0.0769
20000 + $0.0746
This product has a minimum quantity of 1250
Total Price: $0.0969
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

OS-Series cable ties are used in many areas where thin-walled or soft insulation wires and cable are being installed, for instance automotive and aircraft industry. OS ties manufactured from PA66V0 material are suitable for applications where safety regulations require reduction of smoke and dangerous gases.

Features

  • Outside serrated cable tie with smooth surface to the bundle
  • Tie follows the contours of the cable bundle perfectly
  • Takes up less space due to curved head design
  • Easy insertion combined with high tensile strength
  • PA46 material for higher temperatures up to +195 °C (500 h)
  • PA66V0 cable ties fulfill Limited Fire Hazard requirements
  • Easy application either manually or with a processing tool
Products specifications
Attribute name Attribute value
Country of Origin GB
Product Family Outside Serrated Cable Tie
Global Part Number T50ROS-PA66HS-BK
Product Base Type T50ROS
Material Abbreviation PA66HS
Color Black
Lead Time 16 Weeks
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 200 mm
Cable Tie Length (Imperial) 7.9 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.3 mm
Max. Bundle Diameter Φ50 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Material Polyamide 6.6, heat stabilised (PA66HS)
Flammability UL 94-V2
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
Specifications EN 45545-2
ELV compliant Yes
ROHS compliant Yes
Halogen-free Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 118-05050 T50ROS-PA66HS-BK Catalogue PageHT_Product_Cat_2022_1_2_061-061_COM.pdfCatalogue

Drawing

HellermannTyton 118-05050 T50ROS-PA66HS-BK Drawing PDFCAD_98-0602-001-CSC.pdfDrawing

Datasheet

HellermannTyton 118-05050 T50ROS-PA66HS-BK Datasheet PDFTDS_118-05050_com.pdfDatasheet
