118-00174 T120ROS

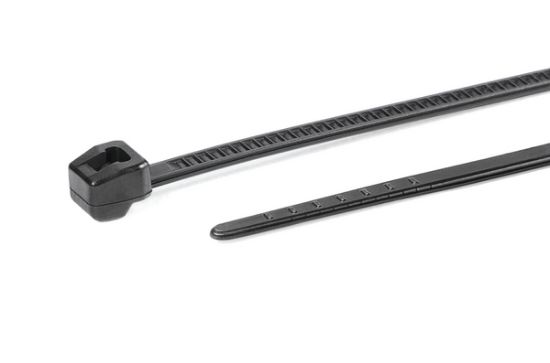

Standard Cable Tie, Outside Serrated, 385mmx7.6mm(LxW), For Panel Thickness, Bundle Max. Φ105 mm, 535N Tensile Strength, PA66HIRHS(REC), -40 °C to +110 °C, Black
Manufacturer: HellermannTyton
SKU: 118-00174
MPN: T120ROS-PA66HIRHS(REC)-BK
Product Family: Outside Serrated Cable Tie
Category: Standard Cable Tie
Unit Price: $0.4494
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
400 + $0.4494
500 + $0.4407
750 + $0.4249
1250 + $0.4049
1750 + $0.3918
2500 + $0.3779
4000 + $0.3595
This product has a minimum quantity of 400
Total Price: $0.4494
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

OS-Series cable ties are used in many areas where thin-walled or soft insulation wires and cable are being installed, for instance automotive and aircraft industry. OS ties manufactured from PA66V0 material are suitable for applications where safety regulations require reduction of smoke and dangerous gases.

Features

  • Manufactured from Post Industrial Recycled (PIR) PA66
  • Heat stabilised, impact modified material
  • Easy insertion combined with high tensile strength
  • Outside serrated cable tie with smooth surface to the bundle
  • Tie follows the contours of the cable bundle perfectly
  • Takes up less space due to curved head design
  • Easy application either manually or with a processing tool
Products specifications
Attribute name Attribute value
Country of Origin GB
Product Family Outside Serrated Cable Tie
Global Part Number T120ROS-PA66HIRHS(REC)-BK
Product Base Type T120ROS
Material Abbreviation PA66HIRHS(REC)
Color Black
Lead Time 16 Weeks
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 385 mm
Cable Tie Length (Imperial) 15.2 inch
Cable Tie Width (Metric) 7.6 mm
Cable Tie Width (Imperial) 0.30 inch
Tie Strap Thickness 1.8 mm
Max. Bundle Diameter Φ105 mm
Min. Tensile Strength (Metric) 535N
Min. Tensile Strength (Imperial) 120 Lbs (54.6 Kgf)
Material Polyamide 6.6 recycled, high impact modified, heat stabilised (PA66HIRHS(REC))
Flammability UL 94-HB
Operating Temperature -40 °C to +110 °C
ELV compliant Yes
ROHS compliant Yes
Halogen-free Yes
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 118-00174 T120ROS-PA66HIRHS(REC)-BK Drawing PDFCAD_02-0425-001-CSC.pdfDrawing

Datasheet

HellermannTyton 118-00174 T120ROS-PA66HIRHS(REC)-BK Datasheet PDFTDS_118-00174_com.pdfDatasheet
