118-00103 T50SOS

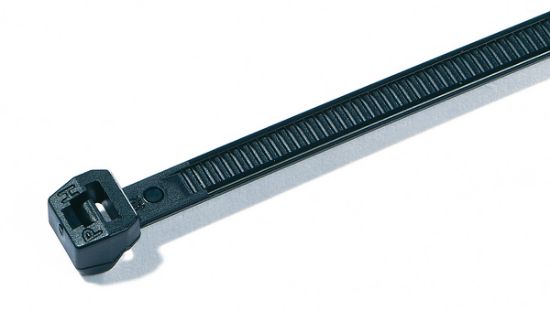

Standard Cable Tie, Outside Serrated, 150mmx4.6mm(LxW), Bundle Max. Φ35 mm, 225N Tensile Strength, PA66V0, -40 °C to +85 °C, Nature
Manufacturer: HellermannTyton
SKU: 118-00103
MPN: T50SOS-PA66V0-NA
Product Family: Outside Serrated Cable Tie
Category: Standard Cable Tie
Unit Price: $0.2190
Availability: Out of stock - on backorder and will be dispatched once in stock (2 weeks).
Price list
Quantity Net Price /Piece
2500 + $0.2190
3000 + $0.2139
4000 + $0.2059
5000 + $0.1996
7500 + $0.1883
9000 + $0.1832
12000 + $0.1752
This product has a minimum quantity of 2500
Total Price: $0.2190
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

OS-Series cable ties are used in many areas where thin-walled or soft insulation wires and cable are being installed, for instance automotive and aircraft industry. OS ties manufactured from PA66V0 material are suitable for applications where safety regulations require reduction of smoke and dangerous gases.

Features

  • Outside serrated cable tie with smooth surface to the bundle
  • Tie follows the contours of the cable bundle perfectly
  • Takes up less space due to curved head design
  • Easy insertion combined with high tensile strength
  • PA46 material for higher temperatures up to +195 °C (500 h)
  • PA66V0 cable ties fulfill Limited Fire Hazard requirements
  • Easy application either manually or with a processing tool
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Outside Serrated Cable Tie
Global Part Number T50SOS-PA66V0-NA
Product Base Type T50SOS
Material Abbreviation PA66V0
Color Nature
Lead Time 5 Weeks
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 150 mm
Cable Tie Length (Imperial) 5.9 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.3 mm
Max. Bundle Diameter Φ35 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Material Polyamide 6.6 V0 (PA66V0)
Flammability UL 94-V0
EN 45545-2 Classification R22 HL2, R23 HL3
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications EN45545-2
ELV compliant Yes
ROHS compliant Yes
Halogen-free Yes
UL-File Number E193818
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 118-00103 T50SOS-PA66V0-NA Drawing PDFCAD_141447.pdfDrawing

Datasheet

HellermannTyton 118-00103 T50SOS-PA66V0-NA Datasheet PDFTDS_118-00103_com.$autodetected-extension$Datasheet
