118-00039 T18ROS

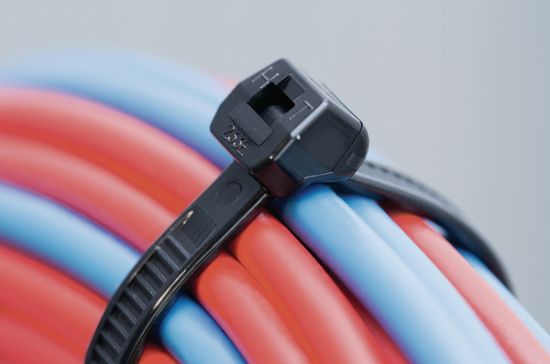

Standard Cable Tie, Outside Serrated, 100mmx2.5mm(LxW), Bundle Max. Φ20 mm, 80N Tensile Strength, PA66W, -40 °C to +85 °C, Black
Manufacturer: HellermannTyton
SKU: 118-00039
MPN: T18ROS-PA66W-BK
Product Family: Outside Serrated Cable Tie
Category: Standard Cable Tie
Unit Price: $0.0500
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
1000 + $0.0500
1500 + $0.0485
2000 + $0.0474
3500 + $0.0452
5000 + $0.0439
7500 + $0.0423
10000 + $0.0413
15000 + $0.0397
20000 + $0.0386
35000 + $0.0365
This product has a minimum quantity of 1000
Total Price: $0.0500
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

OS-Series cable ties are used in many areas where thin-walled or soft insulation wires and cable are being installed, for instance automotive and aircraft industry. OS ties manufactured from PA66V0 material are suitable for applications where safety regulations require reduction of smoke and dangerous gases.

Features

  • Outside serrated cable tie with smooth surface to the bundle
  • Tie follows the contours of the cable bundle perfectly
  • Takes up less space due to curved head design
  • Easy insertion combined with high tensile strength
  • PA46 material for higher temperatures up to +195 °C (500 h)
  • PA66V0 cable ties fulfill Limited Fire Hazard requirements
  • Easy application either manually or with a processing tool
Products specifications
Attribute name Attribute value
Country of Origin GB
Product Family Outside Serrated Cable Tie
Global Part Number T18ROS-PA66W-BK
Product Base Type T18ROS
Material Abbreviation PA66W
Color Black
Lead Time 16 Weeks
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 100 mm
Cable Tie Length (Imperial) 3.9 inch
Cable Tie Width (Metric) 2.5 mm
Cable Tie Width (Imperial) 0.10 inch
Tie Strap Thickness 1.0 mm
Max. Bundle Diameter Φ20 mm
Min. Tensile Strength (Metric) 80N
Min. Tensile Strength (Imperial) 18 Lbs (8.2 Kgf)
Material Polyamide 6.6, UV-resistant (PA66W)
Flammability UL 94-V2
UV Resistance Yes
EN 45545-2 Classification R22 HL2, R23 HL2
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications EN45545-2
ELV compliant Yes
ROHS compliant Yes
Halogen-free Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 118-00039 T18ROS-PA66W-BK Catalogue PageHT_Cat_2018_2019_1_2_068-068_Com.pdfCatalogue

Drawing

HellermannTyton 118-00039 T18ROS-PA66W-BK Drawing PDFCAD_02-0459-001-CSC.pdfDrawing

Datasheet

HellermannTyton 118-00039 T18ROS-PA66W-BK Datasheet PDFTDS_118-00039_com.pdfDatasheet
