118-00021 T50MOS

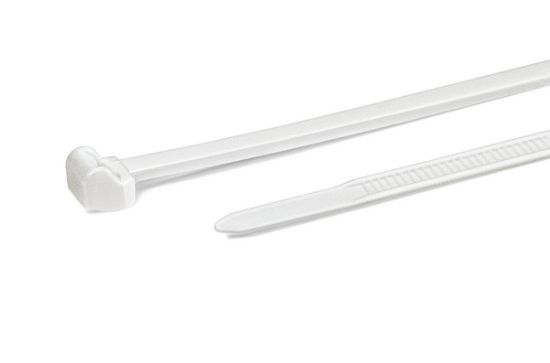

Standard Cable Tie, Outside Serrated, 245mmx4.6mm(LxW), Bundle Max. Φ66 mm, 225N Tensile Strength, PA66V0, -40 °C to +85 °C, White
Manufacturer: HellermannTyton
SKU: 118-00021
MPN: T50MOS-PA66V0-WH
Product Family: Outside Serrated Cable Tie
Category: Standard Cable Tie
Unit Price: $0.4380
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
1750 + $0.4380
2500 + $0.4174
3000 + $0.4069
3500 + $0.3980
5000 + $0.3775
6000 + $0.3670
8000 + $0.3504
This product has a minimum quantity of 1750
Total Price: $0.4380
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

OS-Series cable ties are used in many areas where thin-walled or soft insulation wires and cable are being installed, for instance automotive and aircraft industry. OS ties manufactured from PA66V0 material are suitable for applications where safety regulations require reduction of smoke and dangerous gases.

Features

  • Outside serrated cable tie with smooth surface to the bundle
  • Tie follows the contours of the cable bundle perfectly
  • Takes up less space due to curved head design
  • Easy insertion combined with high tensile strength
  • PA46 material for higher temperatures up to +195 °C (500 h)
  • PA66V0 cable ties fulfill Limited Fire Hazard requirements
  • Easy application either manually or with a processing tool
Products specifications
Attribute name Attribute value
Country of Origin GB
Product Family Outside Serrated Cable Tie
Global Part Number T50MOS-PA66V0-WH
Product Base Type T50MOS
Material Abbreviation PA66V0
Color White
Lead Time 16 Weeks
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 245 mm
Cable Tie Length (Imperial) 9.6 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.3 mm
Max. Bundle Diameter Φ66 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Material Polyamide 6.6 V0 (PA66V0)
Flammability UL 94-V0
EN 45545-2 Classification R22 HL2, R23 HL3
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications EN45545-2
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 118-00021 T50MOS-PA66V0-WH Catalogue PageHT_Product_Cat_2022_1_2_061-061_COM.pdfCatalogue

Drawing

HellermannTyton 118-00021 T50MOS-PA66V0-WH Drawing PDFCAD_141844.pdfDrawing

Datasheet

HellermannTyton 118-00021 T50MOS-PA66V0-WH Datasheet PDFTDS_118-00021_com.pdfDatasheet
