115-00116 RR30SWPM5

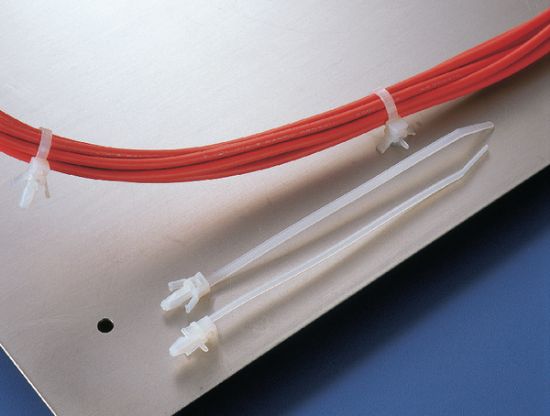

Cable Tie With Push Mount, 134mmx3.3mm(LxW), For 4.8-5.1mm Hole, Bundle Max. Φ27 mm, 98N Tensile Strength, PA66V0, -40 °C to +85 °C, White
Manufacturer: HellermannTyton
SKU: 115-00116
MPN: RR30SWPM5-PA66V0-WH
Product Family: Push Mount Cable Tie For Round Hole
Unit Price: $0.2409
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
2000 + $0.2409
2500 + $0.2342
3500 + $0.2241
4500 + $0.2166
6000 + $0.2080
7500 + $0.2013
10000 + $0.1927
This product has a minimum quantity of 2000
Total Price: $0.2409
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.

Features

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited
  • Releasable and therefor reusable
Products specifications
Attribute name Attribute value
Country of Origin JP
Product Family Push Mount Cable Tie For Round Hole
Global Part Number RR30SWPM5-PA66V0-WH
Product Base Type RR30SWPM5
Material Abbreviation PA66V0
Color White
Lead Time 16 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 134 mm
Cable Tie Length (Imperial) 5.3 inch
Cable Tie Width (Metric) 3.3 mm
Cable Tie Width (Imperial) 0.13 inch
Max. Bundle Diameter Φ27 mm
Min. Tensile Strength (Metric) 98N
Min. Tensile Strength (Imperial) 22 Lbs (10.0 Kgf)
Mounting Type Push Mount
Fixing Hole Shape Circular Hole
Fitting Hole Diameter 4.8-5.1mm
Fitting Panel Thickness 0.5-2.5 mm
Material Polyamide 6.6 V0 (PA66V0)
Flammability UL 94-V0
EN 45545-2 Classification R22 HL2, R23 HL3
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications ANSI/UL 1565, ANSI/UL 62275, EN45545-2
ELV compliant Yes
ROHS compliant Yes
UL-File Number E64962
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 115-00116 RR30SWPM5-PA66V0-WH Catalogue PageHT_Automotive_Products_060-060_COM.pdfCatalogue

Drawing

HellermannTyton 115-00116 RR30SWPM5-PA66V0-WH Drawing PDFCT2050007CST-pdf.pdfDrawing

Datasheet

HellermannTyton 115-00116 RR30SWPM5-PA66V0-WH Datasheet PDFTDS_115-00116_com.pdfDatasheet
