115-00068 RT30SSF5

Cable Tie With Push Mount, 130mmx3.3mm(LxW), For 4.7-5.0mm Hole, Bundle Max. Φ27 mm, 196N Tensile Strength, PA66V0, -40 °C to +85 °C, White
Manufacturer: HellermannTyton
SKU: 115-00068
MPN: RT30SSF5-PA66V0-WH

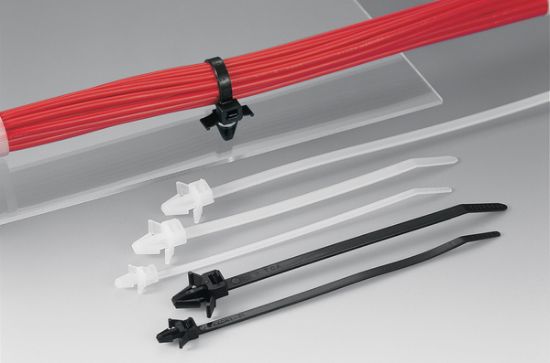

Product Family: Push Mount Cable Tie For Round Hole
Unit Price: $0.7191
Availability: Out of stock - on backorder and will be dispatched once in stock (2 weeks).
Price list
Quantity Net Price /Piece
800 + $0.7191
1000 + $0.7019
1500 + $0.6708
1750 + $0.6589
2500 + $0.6315
3500 + $0.6056
4500 + $0.5863
6000 + $0.5642
7500 + $0.5470
10000 + $0.5249
This product has a minimum quantity of 800
Total Price: $0.7191
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.

Features

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited
  • Releasable and therefor reusable
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Push Mount Cable Tie For Round Hole
Global Part Number RT30SSF5-PA66V0-WH
Product Base Type RT30SSF5
Material Abbreviation PA66V0
Color White
Lead Time 5 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 130 mm
Cable Tie Length (Imperial) 5.1 inch
Cable Tie Width (Metric) 3.3 mm
Cable Tie Width (Imperial) 0.13 inch
Tie Strap Thickness 1.3 mm
Max. Bundle Diameter Φ27 mm
Min. Tensile Strength (Metric) 196N
Min. Tensile Strength (Imperial) 44 Lbs (20.0 Kgf)
Mounting Type Push Mount
Fixing Hole Shape Circular Hole
Fitting Hole Diameter 4.7-5.0mm
Fitting Panel Thickness 0.5-2.3 mm
Material Polyamide 6.6 V0 (PA66V0)
Flammability UL 94-V0
EN 45545-2 Classification R22 HL2, R23 HL3
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications ANSI/UL 1565, ANSI/UL 62275, EN45545-2
ELV compliant Yes
ROHS compliant Yes
UL-File Number E64962
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 115-00068 RT30SSF5-PA66V0-WH Drawing PDFCAD_09-0129-001-csg.pdfDrawing

Datasheet

HellermannTyton 115-00068 RT30SSF5-PA66V0-WH Datasheet PDFTDS_115-00068_com.pdfDatasheet
