111-05472 T50L0HSUVM4

Heat Stabilized Weahter Resistant Cable Tie, 390mmx4.8mm(LxW), Bundle Max. Φ110 mm, 225N Tensile Strength, PA66HSUV, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 111-05472
MPN: T50L-PA66HSUV-BK
Product Family: Standard Cable Tie (Heat&UV Resistant)
Category: Standard Cable Tie
Unit Price: $0.2098
Availability: Out of stock
Price list
Quantity Net Price /Piece
1000 + $0.2098
1500 + $0.2024
2000 + $0.1972
3000 + $0.1898
4500 + $0.1824
7500 + $0.1730
10000 + $0.1678
This product has a minimum quantity of 1000
Total Price: $0.2098
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

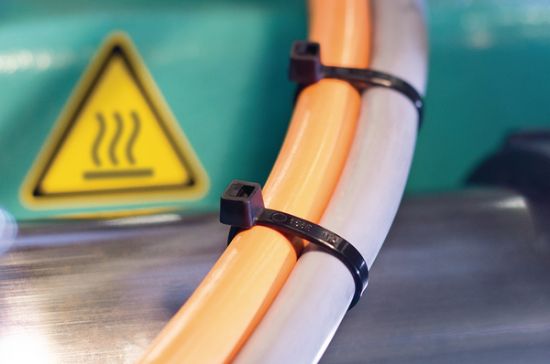

T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.

Features

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Products specifications
Attribute name Attribute value
Country of Origin US
Product Family Standard Cable Tie (Heat&UV Resistant)
Global Part Number T50L-PA66HSUV-BK
Product Base Type T50L
Material Abbreviation PA66HSUV
Color Black
Lead Time 16 Weeks
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 390 mm
Cable Tie Length (Imperial) 15.4 inch
Cable Tie Width (Metric) 4.8 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.4 mm
Max. Bundle Diameter Φ110 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
Flammability UL 94-V2
UV Resistance Yes
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Halogen-free Yes
UL-File Number E64139
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 111-05472 T50L-PA66HSUV-BK Drawing PDFCAD_CT2050009CST.pdfDrawing

Datasheet

HellermannTyton 111-05472 T50L-PA66HSUV-BK Datasheet PDFTDS_111-05472_com.pdfDatasheet
