111-02369 MBT20SS

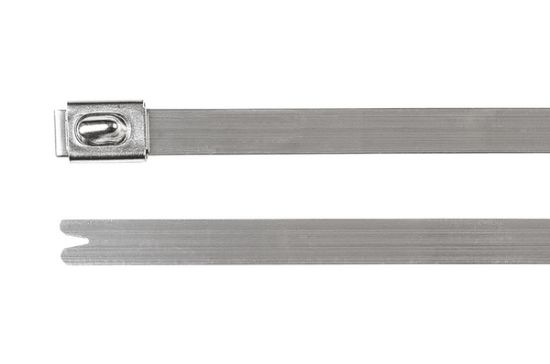

Stainless Steel Cable Tie, 521mmx4.6mm(LxW), Bundle Max. Φ152 mm, 900N Tensile Strength, SS304, -80 °C to +538 °C, Metal Color
Manufacturer: HellermannTyton
SKU: 111-02369
MPN: MBT20SS-SS304-ML
Product Family: MBT-Series, stainless steel 304
Unit Price: $0.7390
Availability: Out of stock - on backorder and will be dispatched once in stock (2 weeks).
Price list
Quantity Net Price /Piece
450 + $0.7390
750 + $0.6960
1000 + $0.6718
1500 + $0.6376
2000 + $0.6134
This product has a minimum quantity of 450
Total Price: $0.7390
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Metal ties are ideal for all applications that require high strength, reliability and fire resistance. The MBT range of stainless steel cable ties can be used in chemical industries and on oil platforms as well as in mass transit, shipbuilding and mining industries. MBT ties are also suitable for machine building, construction and in the outside area of radio technology. Additionally MBT ties are ideal for securing lighting in theatres and exhibition halls.

Features

  • Cable ties MBT, made from stainless steel 304
  • Non-releasable locking feature
  • Corrosion resistant
  • Weather resistant
  • Outstanding chemical resistance
  • High temperature resistant
  • Non-burning
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family MBT-Series, stainless steel 304
Global Part Number MBT20SS-SS304-ML
Product Base Type MBT20SS
Material Abbreviation SS304
Color Metal Color
Lead Time 5 Weeks
Tie Closure Ball Bearing lock
Variant Not Serrated
Cable Tie Length (Metric) 521 mm
Cable Tie Length (Imperial) 20.5 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 0.27 mm
Max. Bundle Diameter Φ152 mm
Min. Tensile Strength (Metric) 900N
Min. Tensile Strength (Imperial) 202 Lbs (91.8 Kgf)
Material Stainless Steel (SS304)
Flammability Non-Burning
UV Resistance Yes
Chemical Resistance Yes
Operating Temperature -80 °C to +538 °C
Specifications ANSI/UL 1565, ANSI/UL 62275, EN 62275
ELV compliant Yes
ROHS compliant Yes
UL-File Number E193818
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 111-02369 MBT20SS-SS304-ML Catalogue PageHT_Product_Cat_2022_1_5_080-080_COM.pdfCatalogue

Drawing

HellermannTyton 111-02369 MBT20SS-SS304-ML Drawing PDFCAD_11-0552-001-CSC.pdfDrawing

Datasheet

HellermannTyton 111-02369 MBT20SS-SS304-ML Datasheet PDFTDS_111-02369_com.pdfDatasheet
