111-01275 T80R

Heat Stabilized Weahter Resistant Cable Tie, 205mmx4.7mm(LxW), Bundle Max. Φ55 mm, 355N Tensile Strength, PA66HSW, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 111-01275
MPN: T80R-PA66HSW-BK
Product Family: Standard Cable Tie (Heat&UV Resistant)
Category: Standard Cable Tie
Unit Price: $0.0720
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
1250 + $0.0720
2000 + $0.0698
3500 + $0.0672
6000 + $0.0647
10000 + $0.0624
15000 + $0.0605
28000 + $0.0576
This product has a minimum quantity of 1250
Total Price: $0.0720
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

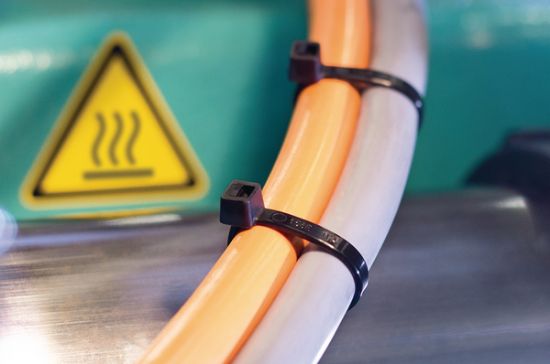

T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.

Features

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Products specifications
Attribute name Attribute value
Country of Origin SG
Product Family Standard Cable Tie (Heat&UV Resistant)
Global Part Number T80R-PA66HSW-BK
Product Base Type T80R
Material Abbreviation PA66HSW
Color Black
Lead Time 16 Weeks
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 205 mm
Cable Tie Length (Imperial) 8.1 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.3 mm
Max. Bundle Diameter Φ55 mm
Min. Tensile Strength (Metric) 355N
Min. Tensile Strength (Imperial) 80 Lbs (36.2 Kgf)
Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
Flammability UL 94-V2
UV Resistance Yes
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
Specifications ANSI/UL 62275, csa-C22.2 no. 62275
ELV compliant Yes
ROHS compliant Yes
Halogen-free Yes
UL-File Number E85319
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 111-01275 T80R-PA66HSW-BK Drawing PDFCAD_17-0007-001-CSH.pdfDrawing

Datasheet

HellermannTyton 111-01275 T80R-PA66HSW-BK Datasheet PDFTDS_111-01275_com.pdfDatasheet
