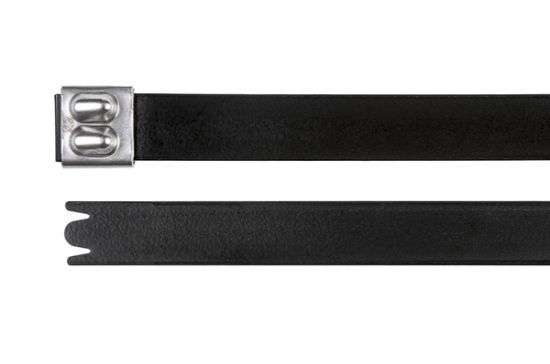

111-00301 MBT27XHFC

Polyester Coated Stainless Steel Cable Tie, Extra Heavy-Duty, 681mmx12.3mm(LxW), Bundle Max. Φ203 mm, 1620N Tensile Strength, SS316L/SP, -80 °C to +538 °C, Black
Manufacturer: HellermannTyton
SKU: 111-00301
MPN: MBT27XHFC-SS316L/SP-BK
Product Family: Polyester Coating Stainless Steel Tie
Unit Price: $3.6450
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
200 + $3.6450
250 + $3.5385
300 + $3.4514
400 + $3.3141
500 + $3.2076
This product has a minimum quantity of 200
Total Price: $3.6450
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Stainless Steel cable ties with poyester coating provide a comfortable installation, especially when using outside at low temperatures. These products are chosen when a high tensile strength is demanded and a sensitive harness requires a carefully bundling.

Features

  • Fully coated MBT, made from type 316L stainless steel with polyester coating
  • Non-releasable locking feature
  • Coated cable tie with smooth edges
  • Comfortable handling and installation
  • Eliminates contact corrosion between dissimilar materials during application
Products specifications
Attribute name Attribute value
Country of Origin GB
Product Family Polyester Coating Stainless Steel Tie
Global Part Number MBT27XHFC-SS316L/SP-BK
Product Base Type MBT27XHFC
Material Abbreviation SS316L/SP
Color Black
Lead Time 16 Weeks
Tie Closure Ball Bearing lock
Variant Not Serrated
Cable Tie Length (Metric) 681 mm
Cable Tie Length (Imperial) 26.8 inch
Cable Tie Width (Metric) 12.3 mm
Cable Tie Width (Imperial) 0.48 inch
Tie Strap Thickness 0.38 mm
Max. Bundle Diameter Φ203 mm
Min. Tensile Strength (Metric) 1620N
Min. Tensile Strength (Imperial) 364 Lbs (165.2 Kgf)
Material Stainless Steel (SS316L), Polyester (SP)
Flammability Non-Burning
UV Resistance Yes
Chemical Resistance Yes
Operating Temperature -80 °C to +538 °C (Coating: -50 °C to +150 °C)
ELV compliant Yes
ROHS compliant Yes
Halogen-free Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 111-00301 MBT27XHFC-SS316L/SP-BK Catalogue PageHT_Product_Cat_2022_1_5_084-085_COM.pdfCatalogue

Drawing

HellermannTyton 111-00301 MBT27XHFC-SS316L/SP-BK Drawing PDFCAD_14-0633-001-CSC.pdfDrawing

Datasheet

HellermannTyton 111-00301 MBT27XHFC-SS316L/SP-BK Datasheet PDFTDS_111-00301_com.pdfDatasheet
