111-00299 MBT14XHFC

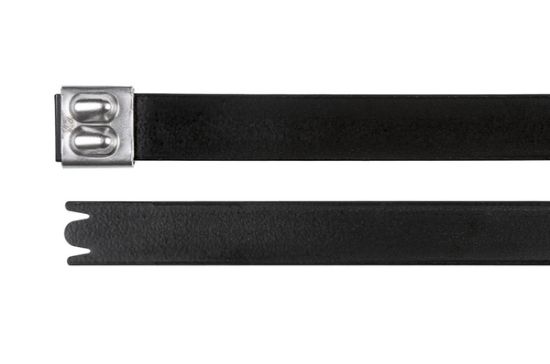

Polyester Coated Stainless Steel Cable Tie, Extra Heavy-Duty, 362mmx12.3mm(LxW), Bundle Max. Φ102 mm, 1620N Tensile Strength, SS316L/SP, -80 °C to +538 °C, Black
Manufacturer: HellermannTyton
SKU: 111-00299
MPN: MBT14XHFC-SS316L/SP-BK
Product Family: Polyester Coating Stainless Steel Tie
Unit Price: $2.2160
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
300 + $2.2160
400 + $2.1366
500 + $2.0750
750 + $1.9630
1000 + $1.8836
This product has a minimum quantity of 300
Total Price: $2.2160
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Stainless Steel cable ties with poyester coating provide a comfortable installation, especially when using outside at low temperatures. These products are chosen when a high tensile strength is demanded and a sensitive harness requires a carefully bundling.

Features

  • Fully coated MBT, made from type 316L stainless steel with polyester coating
  • Non-releasable locking feature
  • Coated cable tie with smooth edges
  • Comfortable handling and installation
  • Eliminates contact corrosion between dissimilar materials during application
Products specifications
Attribute name Attribute value
Country of Origin GB
Product Family Polyester Coating Stainless Steel Tie
Global Part Number MBT14XHFC-SS316L/SP-BK
Product Base Type MBT14XHFC
Material Abbreviation SS316L/SP
Color Black
Lead Time 16 Weeks
Tie Closure Ball Bearing lock
Variant Not Serrated
Cable Tie Length (Metric) 362 mm
Cable Tie Length (Imperial) 14.3 inch
Cable Tie Width (Metric) 12.3 mm
Cable Tie Width (Imperial) 0.48 inch
Tie Strap Thickness 0.38 mm
Max. Bundle Diameter Φ102 mm
Min. Tensile Strength (Metric) 1620N
Min. Tensile Strength (Imperial) 364 Lbs (165.2 Kgf)
Material Stainless Steel (SS316L), Polyester (SP)
Flammability Non-Burning
UV Resistance Yes
Chemical Resistance Yes
Operating Temperature -80 °C to +538 °C (Coating: -50 °C to +150 °C)
ELV compliant Yes
ROHS compliant Yes
Halogen-free Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 111-00299 MBT14XHFC-SS316L/SP-BK Catalogue PageHT_Product_Cat_2022_1_5_084-085_COM.pdfCatalogue

Drawing

HellermannTyton 111-00299 MBT14XHFC-SS316L/SP-BK Drawing PDFCAD_14-0633-001-CSE.pdfDrawing

Datasheet

HellermannTyton 111-00299 MBT14XHFC-SS316L/SP-BK Datasheet PDFTDS_111-00299_com.pdfDatasheet
