157-00466 T50SOSFT6LG-E

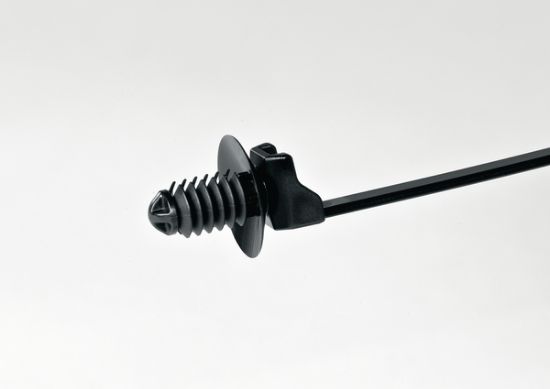

Cable Tie With Fir Tree Mount, 165mmx4.6mm(LxW), For 6.3-7.0mm Hole, Bundle Max. Φ35 mm, 180N Tensile Strength, PA66UV, -40 °C to +85 °C, Black
Manufacturer: HellermannTyton
SKU: 157-00466
MPN: T50SOSFT6LG-E-PA66UV-BK
Product Family: Fir Tree Cable Tie For Round Hole
Unit Price: $0.0690
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
750 + $0.0690
1500 + $0.0665
3000 + $0.0641
5000 + $0.0622
10000 + $0.0598
20000 + $0.0573
This product has a minimum quantity of 750
Total Price: $0.0690
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Products specifications
Attribute name Attribute value
Country of Origin BR
Product Family Fir Tree Cable Tie For Round Hole
Global Part Number T50SOSFT6LG-E-PA66UV-BK
Product Base Type T50SOSFT6LG-E
Material Abbreviation PA66UV
Color Black
Lead Time 16 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 165 mm
Cable Tie Length (Imperial) 6.5 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.3 mm
Max. Bundle Diameter Φ35 mm
Min. Tensile Strength (Metric) 180N
Min. Tensile Strength (Imperial) 40.5 Lbs (18.4 Kgf)
Mounting Type Fir Tree Mount
Fixing Hole Shape Circular Hole
Fitting Hole Diameter 6.3-7.0mm
Fitting Panel Thickness 0.7-7.0 mm
Material Polyamide 6.6, UV-stabilised (PA66UV)
Flammability UL 94-V2
UV Resistance Yes
EN 45545-2 Classification R22 HL2, R23 HL2
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications EN 45545-2
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 157-00466 T50SOSFT6LG-E-PA66UV-BK Drawing PDFCAD_07-0400-002-CSH.pdfDrawing

Datasheet

HellermannTyton 157-00466 T50SOSFT6LG-E-PA66UV-BK Datasheet PDFTDS_157-00466_com.pdfDatasheet
