156-00630 T50SOSFT6SD

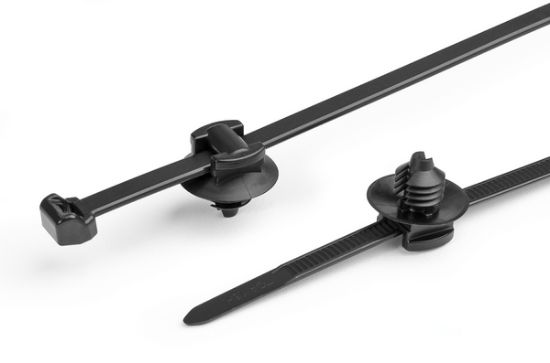

Cable Tie With Fir Tree Mount, 150mmx4.6mm(LxW), For 6.4-7.1mm Hole, Bundle Max. Φ31 mm, 225N Tensile Strength, PA66HS/PA66HIRHS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 156-00630
MPN: T50SOSFT6SD-PA66HS/PA66HIRHS-BK
Product Family: Fir Tree Cable Tie For Round Hole
Unit Price: $0.2597
Availability: 9000 in stock
Price list
Quantity Net Price /Piece
800 + $0.2597
1250 + $0.2525
2000 + $0.2449
3500 + $0.2359
6000 + $0.2272
9000 + $0.2207
This product has a minimum quantity of 800
Total Price: $0.2597
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Features

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Fir Tree Cable Tie For Round Hole
Global Part Number T50SOSFT6SD-PA66HS/PA66HIRHS-BK
Product Base Type T50SOSFT6SD
Material Abbreviation PA66HS/PA66HIRHS
Color Black
Lead Time 5 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 150 mm
Cable Tie Length (Imperial) 5.9 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Max. Bundle Diameter Φ31 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Mounting Type Fir Tree Mount
Fixing Hole Shape Circular Hole
Fitting Hole Diameter 6.4-7.1mm
Fitting Panel Thickness 0.8-3.0 mm
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability UL 94-V2 (Foot Part: UL 94-HB)
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 156-00630 T50SOSFT6SD-PA66HS/PA66HIRHS-BK Drawing PDFCAD_98-0526-002-CSC.pdfDrawing

Datasheet

HellermannTyton 156-00630 T50SOSFT6SD-PA66HS/PA66HIRHS-BK Datasheet PDFTDS_156-00630_com.pdfDatasheet
