113-05013 T50MR0HSM4

Name: 113-05013 T50MR0HSM4
SKU: 113-05013
Price: 0.20 USD
Availability: OutOfStock

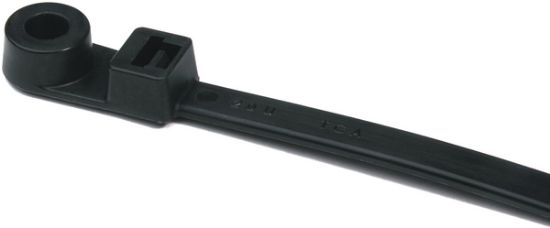

Cable Tie With Screw Mount, 216mmx4.7mm(LxW), M5 Screw, Bundle Max. Φ45 mm, 225N Tensile Strength, PA66HS, -40 °C to +105 °C, Black

Manufacturer: HellermannTyton

SKU: 113-05013

MPN: T50MR-PA66HS-BK

Category: Screw Mount Cable Tie

CAD_CT2050003CST.pdfDrawing

TDS_113-05013_com.pdfDatasheet

Unit Price: $0.1998

Availability: Out of stock

Price list

Quantity	Net Price /Piece
700 +	$0.1998
1000 +	$0.1940
1500 +	$0.1875
2500 +	$0.1792
3500 +	$0.1737
5000 +	$0.1680
8000 +	$0.1604
12000 +	$0.1538

This product has a minimum quantity of 700

Qty:

Total Price: $0.1998

Request a free, non-obligation quote today

Create your individual quote quickly and easily

Full Description

This range of one piece cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The tie is fitted to the panel first and then the cables can be added.

Features

One-piece bundling and fixing tie
Quick and easy installation

Products specifications

Attribute name	Attribute value
Country of Origin	US
Product Family	Screw Mount Cable Tie
Global Part Number	T50MR-PA66HS-BK
Product Base Type	T50MR
Material Abbreviation	PA66HS
Color	Black
Lead Time	16 Weeks
Tie Closure	Plastic Pawl
Variant	Inside Serrated
Cable Tie Length (Metric)	216 mm
Cable Tie Length (Imperial)	8.5 inch
Cable Tie Width (Metric)	4.7 mm
Cable Tie Width (Imperial)	0.19 inch
Tie Strap Thickness	1.2 mm
Max. Bundle Diameter	Φ45 mm
Min. Tensile Strength (Metric)	225N
Min. Tensile Strength (Imperial)	50 Lbs (22.9 Kgf)
Mounting Type	Screw Mount
Mounting Screw Type	M5 Screw
Material	Polyamide 6.6, heat stabilised (PA66HS)
Flammability	UL 94-V2
Operating Temperature	-40 °C to +105 °C, (+145 °C, 500 h)
Specifications	UL 62275
ELV compliant	Yes
ROHS compliant	Yes
UL-File Number	E64139
Manufacturer	HellermannTyton
Product Unit	Piece
Drawing	CAD_CT2050003CST.pdfDrawing
Datasheet	TDS_113-05013_com.pdfDatasheet
